Notecard Quickstart: Notecard and Notecarrier A

Introduction

This tutorial should take approximately 20-30 minutes to complete.

This guide will introduce you to the Blues ecosystem, including the Notecard, Notecarrier, and Notehub.

Throughout this guide, you'll issue serial requests to configure the Notecard, simulate sending data from sensors to the Notecard, and synchronize that data with the cloud.

By the end of this tutorial, you'll have a basic understanding of the process for building connected solutions with Blues.

Key Concepts to Know

Before you dive in, it's important to understand a few key concepts:

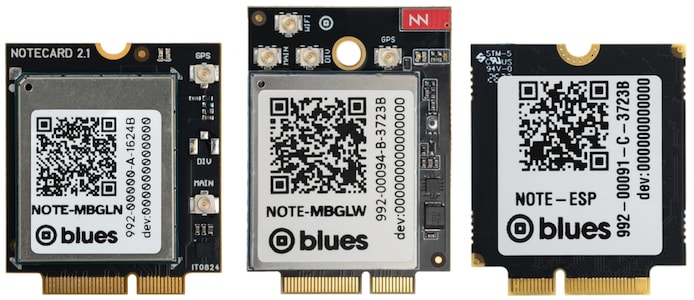

• The Notecard is a device-to-cloud data pump that reduces the complexity of building connected solutions with a secure, reliable cellular, Wi-Fi, or LoRa connection. It's a System-on-Module (SOM) that's ready for embedding into any project.

• Notecarriers are development boards that help you get started quickly with the Notecard. There are a variety of Notecarriers designed to fit different needs, from prototyping with a Feather-based MCU to deploying a production solution.

• Notehub is the cloud service the Notecard uses to securely send and receive data. Notehub also provides a console for fleet management and secure connectors for routing data to 3rd-party cloud applications.

• A Note is a JSON object containing developer-provided content. A Note is the primary means of sending data to/from a Notecard.

Notecard and Notehub work together to provide bidirectional wireless communication capabilities, both outbound (from your microcontroller or single-board computer to the cloud):

And inbound (from the cloud to your microcontroller or single-board computer):

Before You Begin

To complete this quickstart, make sure you have access to the following:

• Notecard and Notecarrier A.

• Micro USB to USB-A data cable (not a charge-only cable).

• Computer with an available USB port.

• A browser that supports the Web Serial API, like Chrome, Microsoft Edge, or Opera.

• If you're using a Cellular Notecard, make sure you're in a location with stable cellular coverage.

• An internet connection that allows access to Notehub.

Connect Your Notecard and Notecarrier

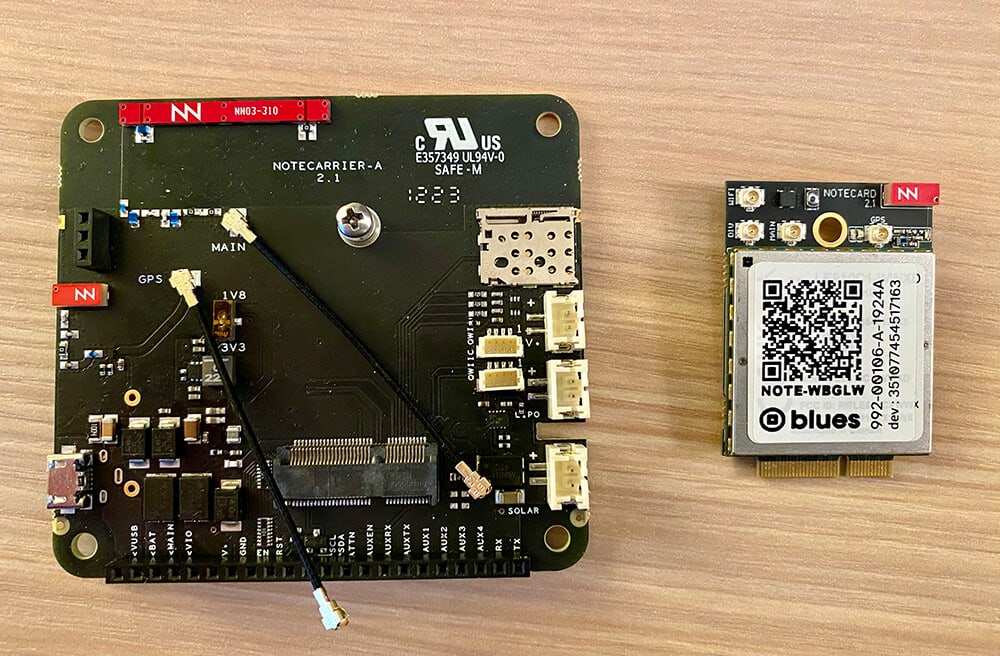

The Notecarrier A includes two u.FL cables for cellular and GPS with one side connected to the Notecarrier and one side free.

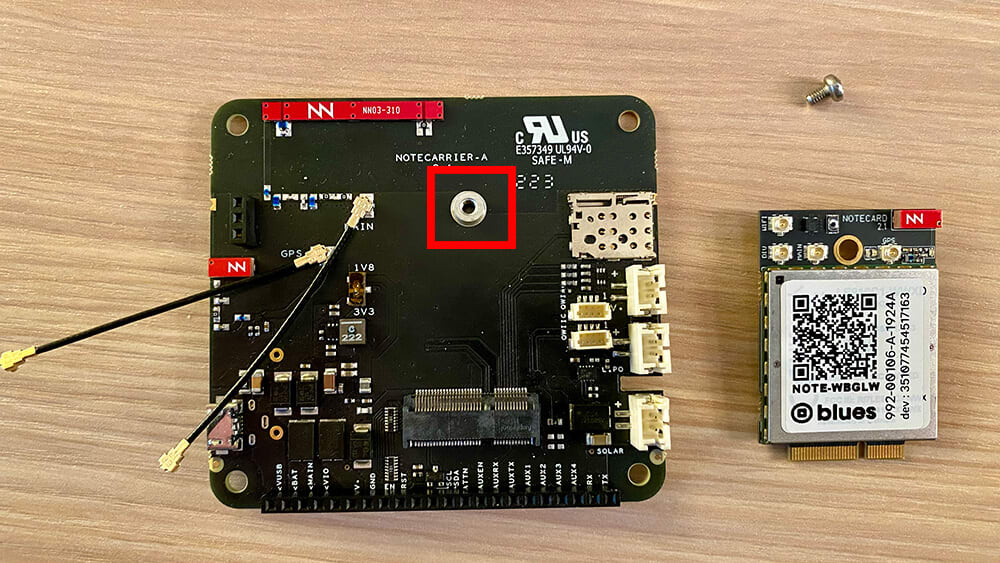

1. Remove the screw from the mounting receptacle on the Notecarrier and rotate the U.FL cables away from the M.2 socket.

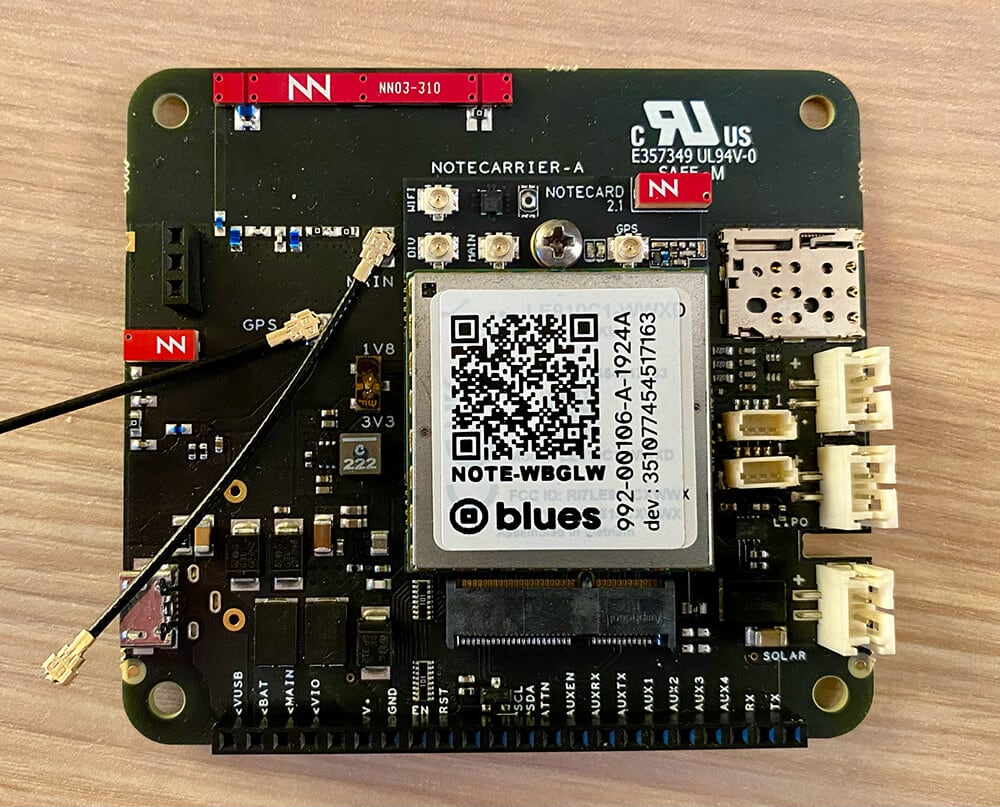

2. Place the Notecard into the M.2 slot on the Notecarrier. Once inserted, press gently until the Notecard is inserted and the screw receptacle hole is completely visible.

3. Re-insert the screw into the mounting receptacle and tighten to secure the Notecard to the Notecarrier. Be sure to not overtighten the screw.

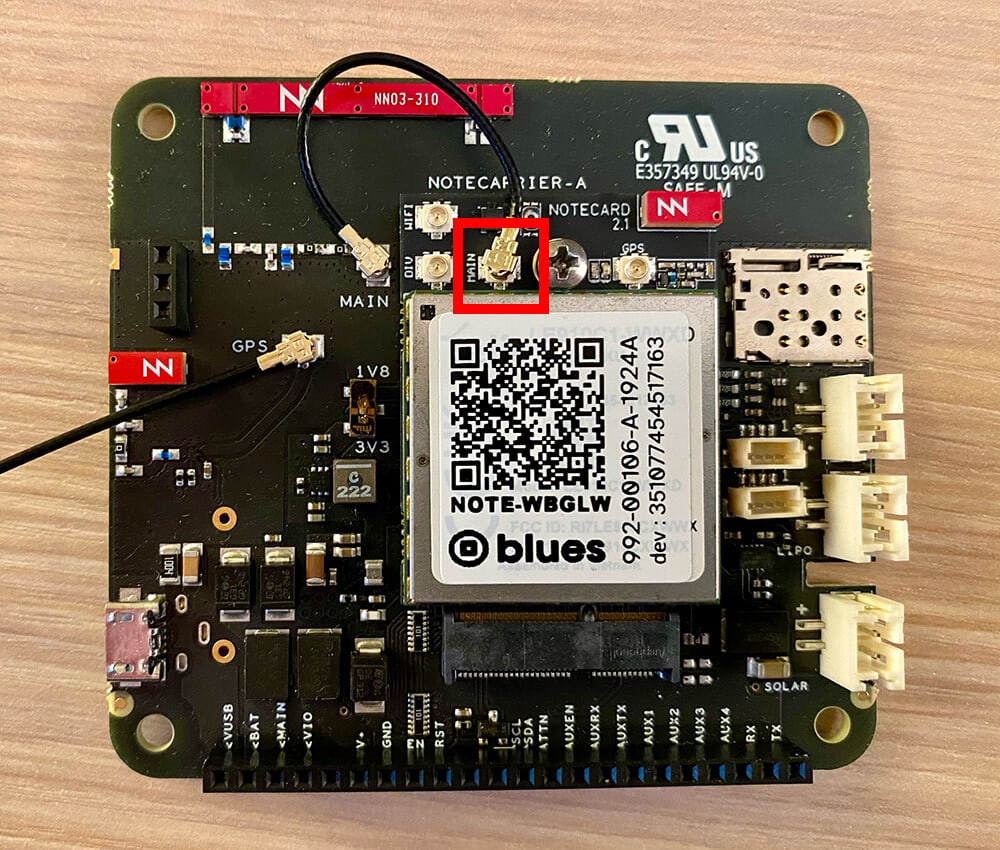

4. Secure the free end of the u.FL cable connected to the socket labeled MAIN on the Notecarrier to the MAIN socket on the Notecard.

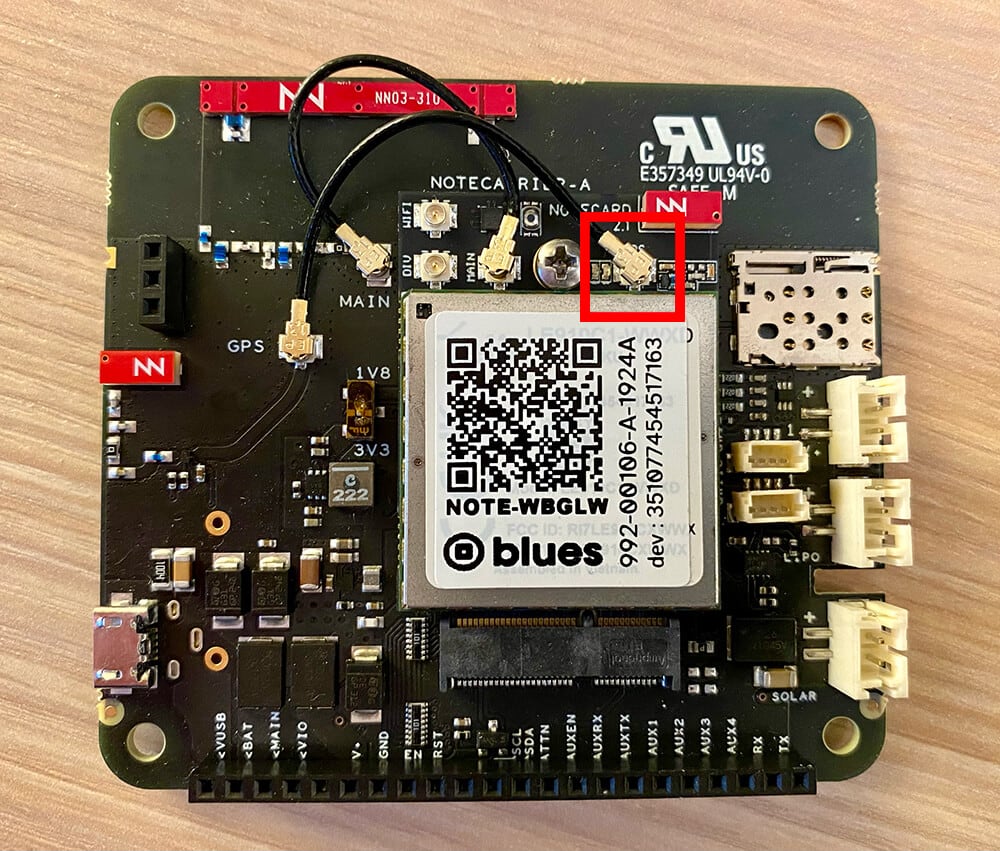

5. Secure the free end of the u.FL cable connected to the socket labeled GPS on the Notecarrier to the GPS socket on the Notecard.

note

The Wi-Fi only "Notecard WiFi" does not have onboard GPS, and therefore does not have a GPS socket. Skip this step if you are using the Notecard WiFi.

Now you're ready connect to the Notecard over USB and continue with the Quickstart!

Power Up the Notecard and Notecarrier

Connect a USB cable from the Notecarrier's USB port to your computer's USB port.

note

If you're using the Notecard WiFi you have one additional step: complete our guide to connecting to a Wi-Fi Access Point, as you'll need a network connection to complete the rest of this tutorial.

Connect to the Notecard

With your Notecard connected your next step is to communicate with the Notecard over USB. To do so, first locate the panel on the right-hand side of your browser window, which we call the In-Browser Terminal.

Within the In-Browser Terminal, click the USB Notecard button. A browser prompt will appear asking for permission to connect to a USB serial device:

• If you're on a Mac, select either Notecard (cu.usbmodemNOTE1) or Notecard (tty.usbmodemNOTE1).

• On Windows, the option will show up as USB Serial Device (COMx).

• On Linux the option will show up as Notecard (ttyACM0).

Validate Serial Connection

Now you're ready to send your first JSON request to the Notecard! All requests and responses to/from the Notecard are in JSON format and are structured with the command as the value of a req key. Additional arguments are written as additional key-value pairs. For example, {"req":"card.version"} or {"req":"hub.set", "mode":"continuous"}.

The first request you'll send invokes the card.version API, which returns metadata about your Notecard.

Copy and paste the following request into the in-browser terminal (click the TRY IT button below).

Hit Enter and you'll see a response similar to the example output.

{"req":"card.version"}

{
 "version": "notecard-5.3.1",
 "device": "dev:000000000000000",
 "name": "Blues Wireless Notecard",
 "sku": "NOTE-NBGL-500",
 "board": "1.11",
 "cell": true,
 "gps": true,
 "api": 5,
 "body": {
  "org": "Blues Wireless",
  "product": "Notecard",
  "target": "r5",
  "version": "notecard-5.3.1",
  "ver_major": 5,
  "ver_minor": 3,
  "ver_patch": 1,
  "ver_build": 371,
  "built": "Sep  5 2023 12:21:30"
 }
}

Well done! You have properly set up, configured, and validated your hardware. Next, you'll configure your Notecard to communicate with Notehub.

Set up Notehub

Notehub is a secure proxy cloud service that communicates with the Notecard, provides tooling for managing fleets of devices, allows you to perform over-the-air Notecard and host MCU firmware updates, and makes it easy for you to route data to your own cloud applications.

In this section, you'll set up a Notehub Project and create your first ProductUID. A ProductUID is the unique identifier you will use to associate a Notecard with a Notehub Project, and ensure that data from the Notecard ends up in the right location.

Create a Notehub Project

1. Sign in or sign up for Notehub using the links below.

   Create a Notehub Account

   Sign up

   Already have an account? Sign in

2. Click "Create Project" on the dashboard. In the New Project card, give your project a name and ProductUID.



   note

   The ProductUID must be globally unique. To reduce collisions, Notehub prepends a generated namespace based on your account email, for instance com.your-company.your-name:. Enter any identifier you like in the input on the right.

3. Take note of your ProductUID. This identifier is used by Notehub to associate your Notecard to your project.



Set up Notecard

Now that you know how to send requests to the Notecard, let's next tell the Notecard about your Notehub project so it knows where to send data.

To associate the Notecard with your project in Notehub you must assign the ProductUID you created to your Notecard. A Notecard can easily be moved between projects over time, but it can only belong to one project at a time

To set the ProductUID, you'll start by sending a hub.set JSON request to your Notecard. Once the Notecard has finished processing your request, it will send a JSON response back to your computer to let you know that the request is complete.

An empty JSON object ({}) from the Notecard indicates a successful request. If an error occurs, the Notecard will return a JSON object with an err key and a string describing the error that occurred.

Copy and paste the following Notecard request, making sure to replace com.your-company.your-name:your_product with the ProductUID you created in the last step (click the TRY IT button below).

{"req":"hub.set", "product":"com.your-company.your-name:your_product"}

{}

The JSON object above consists of two key-value pairs. The first provides the name of the request, denoted with the key req and a value of hub.set. The second, product, is one of the arguments for the hub.set request. You can see all the arguments for this and all Notecard Requests in the API Documentation.

Validate Your ProductUID and Connection

In this section, you'll validate your Notecard configuration by performing a manual sync with Notehub and then request sync status updates from the Notecard.

Start a Sync

Initiate a synchronization between the Notecard and Notehub with a hub.sync request, as shown below.

{"req":"hub.sync"}

{}

Once a sync has started, you can monitor the state of the sync by watching the status bar at the top of the in-browser terminal.

As soon as you see "Successful Notehub sync [x]s ago", the sync is complete!

{"req":"hub.sync.status"}

{
  "status": "starting communications {wait-module} {connecting}",
  "requested": 2
}
...
{
  "status": "modem now ON {modem-on}",
  "requested": 6
}
...
{
  "status": "waiting for wireless service 6 sec [+---] {cell-registration-wait}",
  "requested": 12
}

{"req":"hub.sync.status"}

{
 "time": 1615585299,
 "completed": 4
}

You should now be able to return to Notehub, refresh the Devices page, and see that a device has been added to your project:

{"req":"hub.sync.status"}

{
  "status": "opening notehub: no project was found with product UID product:com.your-company.your-name:your_product {product-noexist} {notehub-open-failure}",
  "requested": 10
}
...
{
  "status": "can't open notehub: opening notehub: no project was found with product UID product:com.your-company.your-name:your_product {product-noexist} {notehub-open-failure}",
  "requested": 11
}

You're doing great! You have now configured your Notecard and are ready to send Notes to your Notehub Project!

Queue Notes to Your Notecard

In this section, you will add Notes simulating sensor data to your Notecard. Imagine your Notecard is connected to a Host MCU that reads temperature and humidity data from a sensor. Your sample data might look like this: {"temp":35.5,"humid":56.23}.

To do this, you will use the Notecard's note.add API that includes a body argument which accepts any arbitrary JSON data.

Copy and paste the following request into the Notecard Terminal, then press Enter to send it to the Notecard.

{"req":"note.add","body":{"temp":35.5,"humid":56.23}}

{"total":1}

This request will create a Note that includes your JSON body and additional metadata like creation time and location. As with other requests, the first key-value pair of the JSON specifies the note.add request, but in this case, the argument of body contains a full JSON object of your data as the value. There are a number of other possible arguments to note.add, see the documentation.

In response, the Notecard returns a JSON object indicating the total number of Notes ready to sync to Notehub. You won't see your Note in Notehub just yet, because the Notecard queues your Notes until it is time to sync them to the cloud.

Excellent work! You have queued your first Note to the Notecard!

Send Notes from Notecard to Notehub

In this section, you'll perform another sync to send your Note to Notehub. As before, you can manually initiate a sync by entering the following JSON request in the in-browser terminal:

{"req":"hub.sync"}

{}

Behind the scenes, your Notecard will again search for a network connection and connect to Notehub. Once the connection is made, the Notecard uploads your Note and closes the connection.

As before, you can monitor the state of the sync by watching the status bar at the top of the in-browser terminal, or use a hub.sync.status request.

By default, the Notecard places Notes in a Notefile called data.qo. The .qo extension means that the file is an "outbound queue," or a queue that originates on the Notecard and is synchronized with Notehub.

Great work! Your Note has now been transferred from the Notecard to the cloud and stored in your Notehub project!

note

The Notecard is a low-power device (consuming only ~8µA@5V when idle) and is built to be continuously powered. This is important to know because certain features of the Notecard require the current time, which is established upon the Notecard successfully connecting to a network upon startup.

View Notes on Notehub

In this section, you'll learn how to view and interact with your Note on Notehub.

Navigate to Notehub.io.

You will see your project dashboard:

Click on the card with your Project, and the device dashboard for your Project will load. You'll see your Notecard in the Devices list.

Click Events in the left-side navigation. In the Events list, you should see your Note in the list with a simulated sensor reading body. Your Note will be listed in the table, along with other session and environment-specific events sent automatically by the Notecard.

It's that simple, your product and data are now online!

Send Notes from Notehub to Notecard

It's important to remember that communication between the Notecard and Notehub is bi-directional, both outbound (from the Notecard to the cloud, as documented above) and inbound (from the cloud to the Notecard).

While not part of the quickstart, you can learn more about inbound data syncing in the Notehub Walkthrough.

Next Steps

Congratulations! You've now queued sensor data on a Notecard and sent that data to the cloud!

If you're following the Blues Quickstart, next we recommend setting up your microcontroller:

1. Use the Notecard to Send Data
2. Set Up Your Microcontroller
3. Build Your First IoT App With Blues
4. Send Data to Your Cloud

At any time, if you find yourself stuck, please reach out on the community forum.
