Collecting Sensor Data
- C/C++ (STM32Cube), STM32 Nucleo, and Notecarrier A

Don't see your favorite hardware here? Rest assured the Notecard works with virtually every MCU and SBC available. If you can't figure out how to complete this tutorial let us know in our forum and we can help you out.

Introduction

This tutorial should take approximately 40-50 minutes to complete.

In this tutorial, you'll learn how to take sensor readings from a Device and send readings to your Notecard and the Blues Notehub. You'll use C/C++ (STM32Cube) running on a STM32 Nucleo wired up to Notecarrier A hardware. If you would like to use a different language, board, or Notecarrier, modify the dropdowns at the top of this guide. And if you get stuck at any point, the full source code for each example is available on GitHub.

Set up Hardware

First, you'll need to get all of your hardware connected. Follow the instructions below to connect your STM32 Nucleo and Notecard mounted on a Notecarrier A.

In order to complete this guide, you'll need the following:

• A Notecard mounted to Notecarrier A.

• Any STM32 Nucleo board. This guide uses the STM32L432KC. If you use a different board, make sure to adapt the pin configuration instructions below to your specific board.

• Micro USB to USB-A cable.

• Your sensor of choice. This guide uses the Adafruit BME680. You're welcome to use any sensor and adapt the code in this guide to read from it instead.

• A breadboard and jumper wires.

• The STM32CubeIDE. ST provides installers for all major OSes. The IDE is free, provided you create an account at ST.com.

Connect the sensor to your STM32 Nucleo

First, connect the BME680 sensor to your STM32 Nucleo board.

If you would like a visual guide to assist you, this one from arm is useful.

1. Connect VIN from the BME680 Breakout to the 3V3 pin on the STM32 Nucleo board.
2. Connect GND from the BME680 breakout to a GND pin on the STM32 Nucleo board.
3. Connect SCL from the BME680 breakout to the D5 (PB6) pin on the STM32 Nucleo board.
4. Connect SDI from the BME680 breakout to the D4 (PB7) pin on the STM32 Nucleo board.

Connect the STM32 Nucleo to your Notecarrier A

Now connect to your Notecarrier A to your STM32 Nucleo using a Serial connection.

1. Connect TX from the Notecarrier A to the D0/RX (PA10) pin on the STM32 Nucleo board.
2. Connect RX from the Notecarrier A to the D1/TX (PA9) pin on the STM32 Nucleo board.
3. Connect GND from the Notecarrier A to a GND pin on the STM32 Nucleo board.
4. Connect V+ from the Notecarrier A to the 5V pin on the STM32 Nucleo board.

Create a Notehub Project

Now that your hardware is all connected, let's create a new Notehub project to receive sensor readings from your Notecard.

1. Navigate to notehub.io and log-in, or create a new account.

2. Using the New Project card, give your project a name and ProductUID.



   note

   The ProductUID must be globally unique, so we recommend a namespaced name like "com.your-company.your-name:your_product".

3. Take note of your ProductUID. This identifier is used by Notehub to associate your Notecard to your project.



Write Firmware

Create a new STM32CubeIDE Project

note

Before selecting to create a new project, you may wish to move either this tutorial, or the IDE, to another desktop. If not, the following pop-up menus will display over the top of this tutorial.

1. Open the STM32CubeIDE and select File > New > STM32 Project. It may take a few minutes while the IDE downloads some required dependencies.



2. In the STM32 Project dialog, click the Board Selector tab.



3. In the Part Number Search box, enter "NUCLEO-L432KC" (or your dev board part number, if different).



4. Select the board from the list and click the Next button (appears bottom/right -- below screenshot area).



5. Give your project a name (for example, stm32-sensor-tutorial-with-library), and specify a location to save the files. Keep the remaining defaults and click Finish.



6. Click Yes in the "Initialize all peripherals with their default Mode?" dialog.



7. Click Yes when prompted with the "Open Associated Perspective?" dialog, to switch to the "Device Configuration Tool perspective."

Configure the STM32 Nucleo Pinout

Once your project is loaded in the STM32CubeIDE, the project will load the Device Configuration Tool, which you'll use to define how the GPIO pins on the STM32 Nucleo board should function. If this perspective doesn't load automatically, double-click on the *.ioc file in your project to load it.

Configure I2C Pins

Let's start by configuring the I2C pins for communicating with the BME680.

1. First, click on the pin labeled PB7, then in the drop-down that appears, select the I2C1_SDA option.



2. Next, click on the pin labeled PB6, then in the drop-down that appears, select the I2C1_SCL option.



Configure USART Pins

Now, let's configure the USART pins for communicating with the Notecard over Serial.

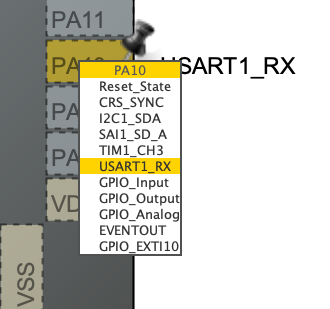

1. Click on the pin labeled PA10, then in the drop-down that appears, select USART1_RX.



2. Next, click on the pin labeled PA9, then in the drop-down that appears, select USART1_TX.



Configure Peripherals

To finalize the configuration, we'll need to enable the I2C and USART peripherals on the STM32 Nucleo board.

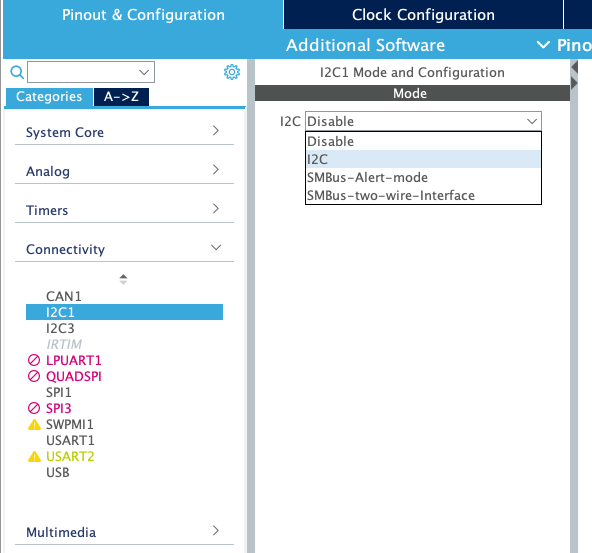

1. In the Pinout & Configuration view, expand the Connectivity category and click on I2C1.



2. In the Mode panel, change I2C from Disable to I2C.



3. Next, click on USART1 in the Connectivity category, then in the Mode panel, change its mode to Asynchronous.



4. Once you do that, a Configuration panel will appear below the Mode panel. In the Basic Parameters section of the Parameter Settings tab, change the Baud Rate to 9600, and leave the remaining parameters as they are.



5. Before you leave, navigate to the NVIC Settings tab, and check the box next to USART1 global interrupt in the Enabled column.



Generate MCU Firmware

1. Now, select File > Save from the menu bar (Ctrl+S).

2. Click Yes in the "Do you want to generate Code?" dialog. At this point, STM32CubeIDE will generate the code to configure the GPIO functions of your STM32 Nucleo board as specified.



3. Click Yes when prompted with the "Open Associated Perspective?" dialog, to switch to the "C/C++ perspective."

Customize MCU Firmware

Add note-c to Project

The easiest way to communicate with the Notecard from the STM32 Nucelo is with the note-c library.

1. Clone or download the note-c library from its GitHub Repo.

2. Copy the complete contents of the library into your project by dragging it from the filesystem into the root of your project in the STM32CubeIDE. In the File and Folder Operation window, select the Copy files and folders option in the dialog and click OK.



3. Next, you'll want to tell STM32CubeIDE where to find the note-c source, so you can include it in your app. Select Project > Properties from the menu bar.



4. In the dialog, expand the C/C++ General item and select Paths and Symbols. If the Properties pane looks empty when you first open it, type "Paths and Symbols" in the filter textbox and it should appear.



5. Click the Add... button under the Includes tab. Type note-c into the text box, click OK. Be sure to also press the Apply button.



6. Navigate to the Source Location tab, and click the Add Folder... button. Select the note-c folder from the list, and click OK.

7. Finally, click the Apply and Close button.

Update User Code Blocks

1. Now, open main.c in the Core/Src directory of your project. Look for the /* Private includes --- comment block at the top.

note

/* USER CODE ... blocks are where you will want to place all of your code. This ensures it will remain in place if you ever need to make changes in the Device Configuration Tool and regenerate any of the auto-generated project code.

2. Add the following lines between the /* USER CODE BEGIN Includes */ and /* USER CODE END Includes */ comments:

// C Includes
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>

// 3rd-Party Includes
#include <note.h>

3. To make sure your Notecard knows which project it belongs to, you'll need to specify the ProductUID. Using the ProductUID you specified when creating your Notehub project, add the following definition to the private typedef section, between the /* USER CODE BEGIN PTD */ and /* USER CODE END PTD */ comments:

#define NOTE_I2C_BUFFER_SIZE 0xFF
#define NOTE_PRODUCT_UID "com.your-company.your-name:your_product"

4. Next, you'll need some static variables for I/O with the notecard. Add the following to the private variable section, between the /* USER CODE BEGIN PV */ and /* USER CODE END PV */ comments:

// Necessary for Notecard I/O functionality
static uint8_t serialInterruptBuffer[1];
static volatile size_t serialFillIndex = 0;
static volatile size_t serialDrainIndex = 0;
static uint32_t serialOverruns = 0;
static char serialBuffer[512];
static bool uart1Initialized = false;

5. And you'll also need to forward-declare a few functions needed for Notecard communication. Add the following to the private function prototype section, between the /* USER CODE BEGIN PFP */ and /* USER CODE END PFP */ comments:

// Note Serial Interface
bool noteSerialReset(void);
void noteSerialTransmit(uint8_t *text, size_t len, bool flush);
bool noteSerialAvailable(void);
char noteSerialReceive(void);
size_t noteDebugSerialOutput(const char *message);

// Serial Debug
size_t noteDebugSerialOutput(const char *message);

6. Now let's add our main functionality for communicating with the Notecard. Inside of the main function, look for the /* USER CODE BEGIN 2 */ and /* USER CODE END 2 */ comments and add the following code:

// Set Notecard System Interface
NoteSetFn(malloc, free, HAL_Delay, HAL_GetTick);

// Set Notecard Serial Interface
NoteSetFnSerial(noteSerialReset, noteSerialTransmit, noteSerialAvailable, noteSerialReceive);

// Configure device with ProductUID
J *req = NoteNewRequest("hub.set");
JAddStringToObject(req, "product", NOTE_PRODUCT_UID);
JAddStringToObject(req, "mode", "continuous");
NoteRequest(req);

The call to NoteSetFn provides the note-c library with function pointers for handling a few common operations. The NoteSetFnSerial function initializes the Serial interface to the Notecard and passes in function pointers for handling Notecard operations. You'll define all of these pointers shortly. The last few lines use the "J" JSON library (bundled with the note-c library) to create our first request to the Notecard. Then the request is dispatched via the NoteRequest function.

7. Now it's time to supply the implementation of the user-defined functions (declared above).

   • MX_I2C4_DeInit is designed to reverse the effects of auto-generated MX_I2C4_Init function. The primary purpose of this function is to demonstrate how to return the device to a clean state ready for hibernation.
   • noteDebugSerialOutput is a wrapper around USART2 to make it easier to add logging messages to the code base.
   • noteI2CReceive is the I2C "read" function required by the note-c library. It enables the STM32 Discovery to receive responses from the Notecard.
   • noteI2CReset is a reset function required by the note-c library. It allows the library to clean-up the STM32 Discovery I2C interface as needed.
   • noteI2CTransmit is the I2C "write" function required by the note-c library. It enables the STM32 Discovery to send requests to the Notecard.

   Define the following functions, near the bottom, between /* USER CODE BEGIN 4 */ and /* USER CODE END 4 */:

size_t noteDebugSerialOutput(const char *message) {
  static const size_t USART2_TIMEOUT = 250;
  size_t result = 0;

  HAL_StatusTypeDef status = HAL_UART_Transmit(&huart2, (uint8_t *)message, strlen(message), USART2_TIMEOUT);
  if (HAL_OK == status) {
        result = sizeof(message);
  } else {
    result = 0;
  }

  return result;
}

void noteSerial_UART_IRQHandler(UART_HandleTypeDef *huart) {
  // See if the transfer is completed
  if (huart->RxXferCount == 0) {
    if (serialFillIndex < sizeof(serialBuffer)) {
      if (serialFillIndex+1 == serialDrainIndex) {
        ++serialOverruns;
      } else {
        serialBuffer[serialFillIndex++] = serialInterruptBuffer[0];
      }
    } else {
      if (serialDrainIndex == 1) {
        ++serialOverruns;
      } else {
        serialBuffer[0] = serialInterruptBuffer[0];
        serialFillIndex = 1;
      }
    }
  }

  // Start another receive
  HAL_UART_Receive_IT(&huart1, (uint8_t *) &serialInterruptBuffer, sizeof(serialInterruptBuffer));
}

void MX_USART1_UART_DeInit(void) {
  if (!uart1Initialized) { return; }
  uart1Initialized = false;
  HAL_UART_DeInit(&huart1);
}

bool noteSerialReset() {
  MX_USART1_UART_DeInit();
  MX_USART1_UART_Init();
  return true;
}

void noteSerialTransmit(uint8_t *text, size_t len, bool flush) {
  HAL_UART_Transmit(&huart1, text, len, 5000);
}

bool noteSerialAvailable() {
  return (serialFillIndex != serialDrainIndex);
}

char noteSerialReceive() {
  char data;
  while (!noteSerialAvailable());
  if (serialDrainIndex < sizeof(serialBuffer)) {
    data = serialBuffer[serialDrainIndex++];
  } else {
    data = serialBuffer[0];
    serialDrainIndex = 1;
  }
  return data;
}

8. In the MX_USART1_UART_Init function, find the /* USER CODE BEGIN USART1_Init 0 */ and add the following right after:

// Gaurantee idempotence
if (uart1Initialized) { return; }
uart1Initialized = true;

9. Then, find the /* USER CODE BEGIN USART_Init 2 */ comment, and add the following right after:

// Reset our buffer management
serialFillIndex = serialDrainIndex = serialOverruns = 0;

// Start the inbound receive
HAL_UART_Receive_IT(&huart1, serialInterruptBuffer, sizeof(serialInterruptBuffer));

10. Next, you'll need to make a few modifications to the stm32l4xx_it.c file, which handles Interrupt Service Routines for your project. Look for the private function prototype section, /* USER CODE BEGIN PFP */, and add the following definition, which corresponds to a function in your main.c file:

extern void noteSerial_UART_IRQHandler(UART_HandleTypeDef *huart);

11. Now, let's call this function in the main USART1_IRQHandler function. Look for the /* USER CODE BEGIN USART1_IRQn 1 */ comment and add the following:

noteSerial_UART_IRQHandler(&huart1);

Check your Work

Before moving on to sampling the BME680 and sending data to the Notecard, you will want to confirm everything is working as expected. The easiest approach is to set breakpoints on the return statements of the NoteRequest function, in the n_request.c file, from the note-c library, and run your project in debug mode.

1. Select Run > Debug As > STM32 Cortex-M C/C++ Application from the menu bar.

note

If this is your first time using your STM32 Nucleo board, then you will likely be prompted to update the firmware of its built-in ST-LINK programmer. If you wish to upgrade, then click the Open in update mode button, followed by the Upgrade button on the ST-LINK Upgrade Screen.

2. When the debugger launches, it will automatically break at the first line in the main function, simply click the Resume button (F8). Now it should be halted at your breakpoint and you can confirm that the success variable is true.

If success is set to true, then your STM32 is talking to your Notecard! If not, then please revisit and verify the previous steps. If you are still having trouble, be sure to review the logs from the serial debug output.

Add BME680_driver to your project

The easiest way to read from the BME680 sensor is to use the Bosch BME680 driver, so you'll start by downloading the driver and copying it to your project.

1. Clone or download BME680_driver from its GitHub repo.

2. Copy the complete contents of the library into your project by dragging it from the filesystem into the root of your project in the STM32CubeIDE. In the File and Folder Operation window, select the Copy files and folders option in the dialog and click OK.



3. Open the Project > Properties menu, expand the C/C++ General section, and select Paths and Symbols. Then, under the Includes tab, add the BME680_driver directory just as you did the note-c directory. Be sure to press the Apply button.



4. Also, remember to click on the Source Location tab, and add the BME680_driver directory as a source folder.



5. To finish up, click the Apply and Close button.

Update User Code Blocks

1. Open your main.c file and add the following include to the end of the /* USER CODE BEGIN Includes */ section above <note.h>:

#include <bme680.h>

2. To keep from reading the sensor too fast, we need to specify a delay period in the main loop (adjust as needed). Add the following definition in the private typedef, /* USER CODE BEGIN PTD */, section:

#define DELAY_PERIOD_MS (15*1000) // 15 seconds

3. Next, create an object to hold sensor readings, as well as a buffer for displaying the result. Add the following in the private variable, /* USER CODE BEGIN PV */, section:

// Data used during BME680 sampling
struct bme680_dev gas_sensor;
char i2c_reading_buf[100];
int8_t rslt = BME680_OK;

4. Then, create some forward declarations for the I2C read, write and delay functions that the sensor will call. Add the following to the private function prototype, /* USER CODE BEGIN PFP */, section:

// BME680 Forward Declarations
int8_t bme680I2cRead(uint8_t dev_id, uint8_t reg_addr, uint8_t *reg_data, uint16_t len);
int8_t bme680I2cWrite(uint8_t dev_id, uint8_t reg_addr, uint8_t *reg_data, uint16_t len);

5. Now, in the main function, you'll want to configure the sensor. Add the following right after the /* USER CODE BEGIN 2 */ comment:

// Configure the BME680 driver
gas_sensor.dev_id = BME680_I2C_ADDR_SECONDARY;
gas_sensor.intf = BME680_I2C_INTF;
gas_sensor.read = bme680I2cRead;
gas_sensor.write = bme680I2cWrite;
gas_sensor.delay_ms = HAL_Delay;
gas_sensor.amb_temp = 25;

// Initialize the driver
if (bme680_init(&gas_sensor) != BME680_OK) {
  char bme_msg[] = "BME680 Initialization Error\r\n";
  noteDebugSerialOutput(bme_msg);
} else {
  char bme_msg[] = "BME680 Initialized and Ready\r\n";
  noteDebugSerialOutput(bme_msg);
}

// Select desired oversampling rates
gas_sensor.tph_sett.os_hum = BME680_OS_2X;
gas_sensor.tph_sett.os_pres = BME680_OS_4X;
gas_sensor.tph_sett.os_temp = BME680_OS_8X;

// Set sensor to "always on"
gas_sensor.power_mode = BME680_FORCED_MODE;

// Set oversampling settings
uint8_t required_settings = (BME680_OST_SEL | BME680_OSP_SEL | BME680_OSH_SEL);
rslt = bme680_set_sensor_settings(required_settings, &gas_sensor);

// Set sensor mode
rslt = bme680_set_sensor_mode(&gas_sensor);

// Query minimum sampling period
uint16_t min_sampling_period;
bme680_get_profile_dur(&min_sampling_period, &gas_sensor);

// Sampling results variable
struct bme680_field_data data;

6. Before taking a reading from the sensor, you must implement the bme680I2cRead and bme680I2cWrite functions for the BME680_driver library to call. Just after the /* USER CODE BEGIN 4 */ comment, add the following:

int8_t bme680I2cRead(uint8_t dev_id, uint8_t reg_addr, uint8_t *reg_data, uint16_t len) {
  int8_t result;
  static const size_t I2C_READ_TIMEOUT = 250;

  if (HAL_I2C_Master_Transmit(&hi2c1, (dev_id << 1), &reg_addr, 1, I2C_READ_TIMEOUT) != HAL_OK) {
    result = -1;
  } else if (HAL_I2C_Master_Receive (&hi2c1, (dev_id << 1) | 0x01, reg_data, len, I2C_READ_TIMEOUT) != HAL_OK) {
    result = -1;
  } else {
    result = 0;
  }

  return result;
}

int8_t bme680I2cWrite(uint8_t dev_id, uint8_t reg_addr, uint8_t *reg_data, uint16_t len) {
  int8_t result;
  int8_t *buf;

  // Allocate and load I2C transmit buffer
  buf = malloc(len + 1);
  buf[0] = reg_addr;
  memcpy(buf + 1, reg_data, len);

  if (HAL_I2C_Master_Transmit(&hi2c1, (dev_id << 1), (uint8_t *) buf, len + 1, HAL_MAX_DELAY) != HAL_OK) {
    result = -1;
  } else {
    result = 0;
  }

  free(buf);
  return result;
}

7. Now you're ready take a reading. In the /* USER CODE BEGIN WHILE */ comment section, just after the while (1) statement, add the following code to get sensor data from the BME680 and output it to USB Serial:

// Allow BME680 to sample environment
HAL_Delay(min_sampling_period);

// Query the sample data
rslt = bme680_get_sensor_data(&data, &gas_sensor);

// Format results into a human readable string
sprintf(i2c_reading_buf,
  "T: %u.%u degC, H %u.%u %%rH\r\n",
  (unsigned int)data.temperature / 100,
  (unsigned int)data.temperature % 100,
  (unsigned int)data.humidity / 1000,
  (unsigned int)data.humidity % 1000);

// Publish result to connected PC
noteDebugSerialOutput(i2c_reading_buf);

// Wait between samples
HAL_Delay(DELAY_PERIOD_MS);

// Request the next sample
if (gas_sensor.power_mode == BME680_FORCED_MODE) {
  rslt = bme680_set_sensor_mode(&gas_sensor);
}

note

Once you've added this, click the build icon in STM32CubeIDE to ensure your project compiles.

View Serial Output

1. To view the USB Serial output from your Nucleo board, you can use the console view of STM32CubeIDE. To do that, first click the debug icon in the STM32CubeIDE menu bar.



2. When the debugger connects, the default perspective will change and a console view will load at the bottom of the IDE. To add a USB Serial console, click the "Add console view" menu item and select "Command Shell Console."



3. Select Serial Port as the connection type and Click New… next to Connection Name.



4. Give the connection a name and select the Serial port that corresponds to the Nucleo board for your operating system. Set the baud rate to 115200, Data size to 8, parity to None and Stop bits to 1, then click Finish and OK.



5. When the Console connects, you'll see the name of your connection and the word "CONNECTED."



6. Click the play button in the debug UI to proceed running and you'll see sensor readings every 15 seconds.



Send Sensor Readings to the Notecard

Now that you're connected to the Notecard and successfully reading from the BME680, its time to bring the two sides together!

1. Just after the noteDebugSerialOutput line in the while block, add the following code to create a new Note request to a file called sensors.qo and add a body with the temperature and humidity readings from your sensor:

// Queue sensor reading to Notecard
J *req = NoteNewRequest("note.add");
if (req != NULL) {
  JAddStringToObject(req, "file", "sensors.qo");
  JAddBoolToObject(req, "sync", true);
  J *body = JCreateObject();
  if (body != NULL) {
    JAddNumberToObject(body, "temp", data.temperature / 100.0);
    JAddNumberToObject(body, "humidity", data.humidity / 1000.0);
    JAddItemToObject(req, "body", body);
  }
  NoteRequest(req);
}

2. Build your project and re-run it in debug mode to make sure that readings are still being captured. If you don't see any errors, your Notecard should be getting readings every 15 seconds, which you'll verify in the next section.

View Data in Notehub

Once you start capturing readings, your Notecard will initiate a connection to Notehub and will start transferring Notes. Depending on signal strength and coverage in your area, it may take a few minutes for your Notecard to connect to Notehub and transfer data.

1. Return to notehub.io and open your project. You should see your notecard in the Devices view.



2. Now, click on the Events left menu item. Once your sensor Notes start syncing, they'll show up here.



Use Environment Variables

Environment variables are a Notehub state and settings management feature that allow you to set variables in key-value pairs, and intelligently synchronize those values across devices and fleets of devices.

You may wish to introduce environment variables into your application, for example to control how often to take sensor readings in your firmware. For more information, see our documentation on setting environment variables.

note

This tutorial had you use several configuration settings that are best used when you have your Notecard connected to mains power.

• In the hub.set request, setting mode to "continuous" tells the Notecard to maintain an active network connection.

• In the hub.set request, setting sync to true tells the Notecard to immediately synchronize inbound Notes and environment variables from Notehub.

• In the note.add request, setting sync to true tells the Notecard to immediately synchronize all outbound Notes to Notehub.

Because each of these settings cause the Notecard to use more power, you may wish to disable them if you plan to transition your project to battery power. You can run the command below to put your Notecard into periodic mode with the sync argument turned off.

JSON

COPY

{
 "req": "hub.set",
 "mode": "periodic",
 "sync": false,
 "outbound": 60,
 "inbound": 120
}

Learn more about optimizing the Notecard for low-power scenarios in Low Power Design.

Next Steps

Congratulations! You've successfully connected your STM32 Nucleo to your Notecard and built a basic IoT project.

If you're following the Blues Quickstart, next we recommend learning how to send (and visualize) your data in a cloud application:

1. Use the Notecard to Send Data
2. Set Up Your Microcontroller
3. Build Your First IoT App With Blues
4. Send Data to Your Cloud

At any time, if you find yourself stuck, please reach out on the community forum.
