Companion development boards for easy prototyping and deployment.
Notecarriers are available in several form-factors to facilitate rapid prototyping. Depending upon the variant, a Notecarrier may be designed with direct host integration, size optimization, integrated cellular/Wi-Fi and GNSS antennas, or even to be soldered directly into a solution for low-volume production.
Functional Description
Notecarriers are designed to bridge the gap between prototype and production for the Notecard. The Notecard is designed to be socketed directly onto the circuit board using an edge connector socket, along with a customer's MCU, sensors, and controls. While such a model provides a highly modular configuration for the final product, it can make prototyping unnecessarily difficult.
Notecarriers offer breakout connections for the Notecard, as well as circuitry to provide power management, protection and signal amplification.
Features
- Simple. Provides breadboard compatible pins or solderable mask for direct connections.
- Compatible. Level shifters ensure compatibility with 3.3V or 5V equipment.
- Convenient. Powered by a USB connector (requires 2A supply).
- GPS Ready. Models are either active GPS compatible, or feature a built-in antenna to enable GNSS connectivity.
Compatible Notecards
Due to differences in the physical size of Notecards, certain Notecarriers are only compatible with certain Notecards. However, the Notecarrier XM v1.2 is compatible with all available Notecards:
Package Configuration
Notecarrier XM v1.2

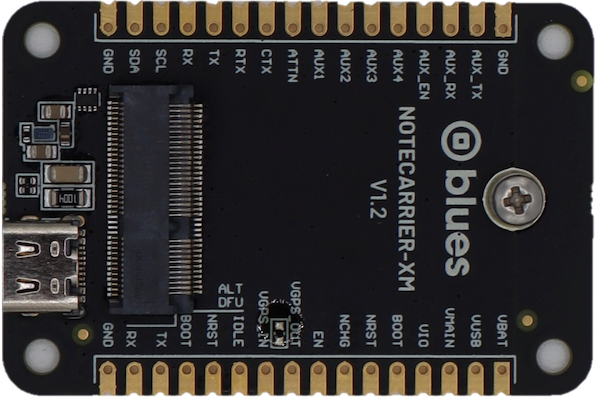

Notecarrier XM is a small form-factor Notecarrier, only slightly larger than the Notecard itself. The Notecarrier XM is our most minimal Notecard, containing essential circuitry for the Notecard and a USB port for USB Serial access to the Notecard. The Notecarrier XM was designed as a low-cost companion to the Notecard LoRa and Notecard WiFi, though it can be used with any Notecard. Unlike other Notecarriers, the Notecarrier XM does not include an external SIM slot.

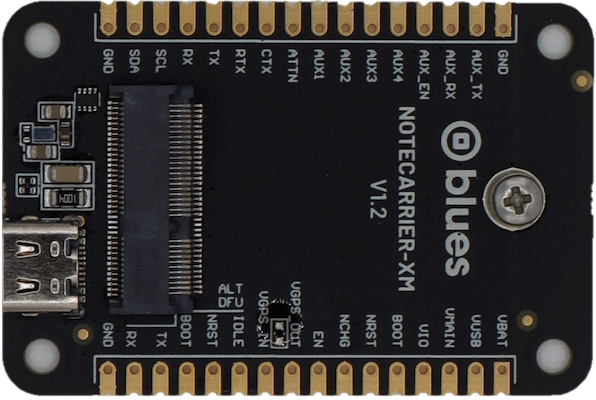

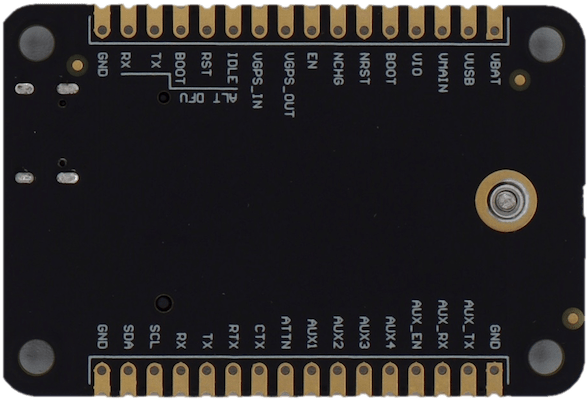

Front | Back |
---|---|
-
Notecard edge connector socket and mounting screw receptacle.
-
USB-C port to power Notecarrier and provide a USB Serial command interface to Notecard.
-
Requires user provided U.FL cellular/Wi-Fi antenna and optional U.FL active GPS antenna.
-
PCB Dimensions: 57mm x 38mm
-
Center of Mounting Holes: 53mm x 34mm (measured from the edge of the PCB to the center of the furthest mounting hole)
Power Information
All Notecarriers can be powered by connecting directly to the USB port. However, most installations will not have USB power available, so several alternate power options are provided by the various Notecarrier models:
-
applying 2.5-5.5VDC to the
VBAT
orVMAIN
pins.Commonly provided via DC power supply or non-rechargeable battery.
Typical USB ports may only be capable of supplying 500 mA of current, which might not be enough to power Notecard during a cellular connection to a GSM network (which can spike to 2A). In this situation, you're advised to supplement power to your Notecarrier with an external source.
GPS (GNSS) Antenna Requirements
All Notecarrier models are designed to support active GPS, and several Notecarrier models provide built-in antennas ready to be connected to a Cellular Notecard using the included U.FL cables.
Enabling Active GPS
If using Notecarrier XM v1.2 with an active GPS antenna, add a 0-Ohm 0603 jumper to
the unpopulated spot between VGPS_OUT
and VGPS_IN.
This will power an active
GPS LNA with a 3.8VDC bias voltage on the center conductor of its GPS U.FL
connector.
Header Descriptions
Notecarrier XM v1.2 Dual 16-pin Headers
Pin Name | Direction | Usage | Usage | Direction | Pin Name | |
---|---|---|---|---|---|---|
GND | IN | Ground | Direct connect to the + pin of the battery connector | IN/OUT | VBAT | |
AUX_TX | OUT | High-speed diagnostic interface | Direct connect to VUSB pin of the USB connector | IN/OUT | VUSB | |
AUX_RX | IN | High-speed diagnostic interface | Diode union of VUSB and VBAT sources | OUT | VMAIN | |
AUX_EN | IN | Enable diagnostics | Digital I/O voltage source with 100mA available | OUT | VIO | |
AUX4 | IN/OUT | API-selectable modes of operation | Access to Notecard boot pin | IN | BOOT | |
AUX3 | IN/OUT | API-selectable modes of operation | For development use only: MUST normally be NC or High Impedance and must never be pulled to GND. A VIO-level pulse of >250ms will reset the Notecard | IN | NRST | |
AUX2 | IN/OUT | API-selectable modes of operation | Active LOW when charging attached LiPo | OUT | NCHG | |
AUX1 | IN/OUT | API-selectable modes of operation | For On/Off switching of customer product. Leave NC or connect to a physical switch or Open Drain output. Notecard will be OFF if pulled to GND. Never apply positive voltage to this pin. | IN | EN | |
ATTN | OUT | Configurable interrupt signal | Active antenna GPS 3.8V from Notecard | OUT | VGPS_OUT | |
CTX | IN | Clear to transmit | Active antenna GPS bias voltage | IN | VGPS_IN | |
RTX | OUT | Request to transmit | Active LOW when ALTDFU is active | OUT | IDLE | |
TX | OUT | UART serial transmit request interface | Allows Notecard to toggle host active LOW reset pin ALTDFU | IN | NRST | |
RX | IN | UART serial receive request interface (Notecard has onboard 10K pull-up resistors) | Allows Notecard to toggle host BOOT pin ALTDFU | IN | BOOT | |
SCL | IN/OUT | I2C clock request interface (Notecard has onboard 10K pull-up resistors) | UART serial transmit request interface, specifically used to program the host MCU. ALTDFU | OUT | TX | |
SDA | IN/OUT | I2C data request interface (Notecard has onboard 10K pull-up resistors) | UART serial transmit request interface, specifically used to program the host MCU. ALTDFU | IN | RX | |
GND | IN | Ground | Ground | IN | GND |
Specifications
Electrical Characteristics
DC Characteristics
Description | Minimum | Maximum | Unit |
---|---|---|---|
Supply Voltage | 2.5 | 5.5 | V |
Supply Current | 500 | 2000 | mA |
Absolute Maximum Ratings
Description | Minimum | Maximum | Unit |
---|---|---|---|
Storage temperature | -35 | 70 | °C |
Actual values may vary based on local conditions such as atmospheric conditions and distance to the cell tower.
Ordering Information
Design Files
Open source hardware designs for all Notecarriers are maintained in the note-hardware GitHub repository.
Terms and Conditions
Visit Blues Hardware Terms & Conditions.
Revision History
Author | Date | Summary |
---|---|---|
Ray Ozzie | 2019-2020 | Document drafted |
John Wiedey | 2020 | Various improvements |
Sean Taylor | 2020 | Various improvements |
Zachary J. Fields | 01 OCT 2020 | Updated information and translated to markdown |
Brandon Satrom | 04 JAN 2021 | Added link to design resources |
Greg Wolff | 13 JAN 2021 | Added BAT pin information to Notecarrier AF datasheet |
Brandon Satrom | 07 APR 2022 | Added Notecarrier A information |
Zachary J. Fields | 20 JUL 2022 | Added Notecarrier F information |
Zachary J. Fields | 24 OCT 2022 | Added Notecarrier B v2 information |
Rob Lauer | 28 OCT 2022 | Added versioning for Notecarrier B v1/v2 |
TJ VanToll | 05 JAN 2023 | Added Notecard Outboard Firmware Update information |
Rob Lauer | 28 FEB 2023 | Re-labeling Notecarrier B as "Basic" |
Rob Lauer | 01 MAR 2023 | Added PCB/Mounting Hole Dimensions |
Rob Lauer | 07 SEP 2023 | Added Notecarrier F v1.3 information |
Rob Lauer | 16 NOV 2023 | Added Notecarrier Pi v2.0 information |
Rob Lauer | 14 MAR 2024 | Added Notecarrier B v3.1 and Notecarrier R v1.0 information |
Rob Lauer | 05 JUN 2024 | Added Notecarrier XS v1.1 information |
Rob Lauer | 10 JUN 2024 | Added Kicad schematics to A, B, F, and Pi Notecarriers |
Rob Lauer | 18 JUL 2024 | Added Notecarrier XS v1.2 information |
Rob Lauer | 22 JUL 2024 | Updated Notecarrier pin descriptions |
TJ VanToll | 19 AUG 2024 | Added Notecarrier X v1.2, XM 1.2, and XP 3.1 information |
