Introduction

This tutorial should take approximately 30-40 minutes to complete.

In this tutorial, you'll learn how to connect your Notecard-powered app to Ubidots, and learn how to start creating simple visualizations with sensor data.

This tutorial assumes you've already completed the initial Sensor Tutorial to capture sensor data, saved it in a Notefile called sensors.qo, and sent that data through the Notecard to Notehub (or that you've already created your own app with sensor data and are ready to connect your app to external services).

Create a Route

A Route is an external API, or server location, where Notes can be forwarded upon receipt.

Routes are defined in Notehub for a Project and can target Notes from one or more Fleets or all Devices. A Project can have multiple routes defined and active at any one time.

Before you create a Route, ensure the data you want to route is available in Notehub by navigating to the Events view.

We'll start with a simple route that will pass Notecard events through to webhook.site, where you can view the full payload sent by Notehub. Using this service is a useful way to debug routes, add a simple health-check endpoint to your app, and familiarize yourself with Notehub's Routing capabilities.

1. Navigate to webhook.site. When the page loads, you'll be presented with a unique URL that you can use as a Route destination. Copy that URL for the next step.



2. Navigate to the Notehub.io project for which you want to create a route and click on the Routes menu item in the left nav.

3. Click Create Route.



4. Select the General HTTP/HTTPS Request/Response route type.



5. Give the route a name (for example, "Health").



6. For the Route URL, use the unique URL you obtained from webhook.site.



7. In the Notefiles dropdown, choose Select Notefiles and enter the name of the Notefile to monitor. For example, we used sensors.qo for the sensor tutorial.



8. Make sure the Enabled switch remains selected, and click Create Route.

9. Return to webhook.site. This page will update automatically with data from your Notecard as it is received in Notehub. The data from your sensor is contained within the body attribute. Notice that Notehub provides you with a lot of information, by default. In the next section, we'll look at using transformations to customize what Notehub sends in a Route.



Use JSONata to Transform JSON

Before moving on to routing data to another external service, let's briefly explore using JSONata to transform the data Notehub routes.

As mentioned above, Notehub provides a lot of information in each Route request. You may want to trim down what you send to the external service, or you might need to transform the payload to adhere to a format expected by that service. Either way, Notehub supports shaping the data sent to a Route using JSONata.

More About JSONata

To learn more about JSONata, have a look at the Blues JSONata Guide.

Transform Your Data

Let's try a simple query to the webhook.site route created in the last section.

1. Navigate to the Routes page in Notehub and click View next to the Route you wish to edit.



2. In the Transform JSON drop-down, select JSONata Expression.



3. In the JSONata expression text area, add the following query to select the temp and humidity from the body, create a location field that concatenates the tower_location and tower_country fields, and create a time field.

   JSON
   COPY

   {
      "temp": body.temp,
      "humidity": body.humidity,
      "location": tower_location & ', ' & tower_country,
      "time": when
   }

4. Click Save Route. Then, navigate back to your webhook.site url. As requests come in, you'll see your custom, JSONata-transformed payload in the Raw Content section.



JSONata is simple, powerful, and flexible, and will come in handy as you create Routes for your external services. To explore JSONata further, visit our JSON Fundamentals guide.

Route to an External Service

Now that you've created your first Route and learned how to use JSONata to shape the data sent by a Route, you'll connect Notehub to an external service.

For this tutorial, you'll connect your app to Ubidots, which provides data collection, analysis, and visualization tooling for connected IoT projects.

Create an Ubidots Account

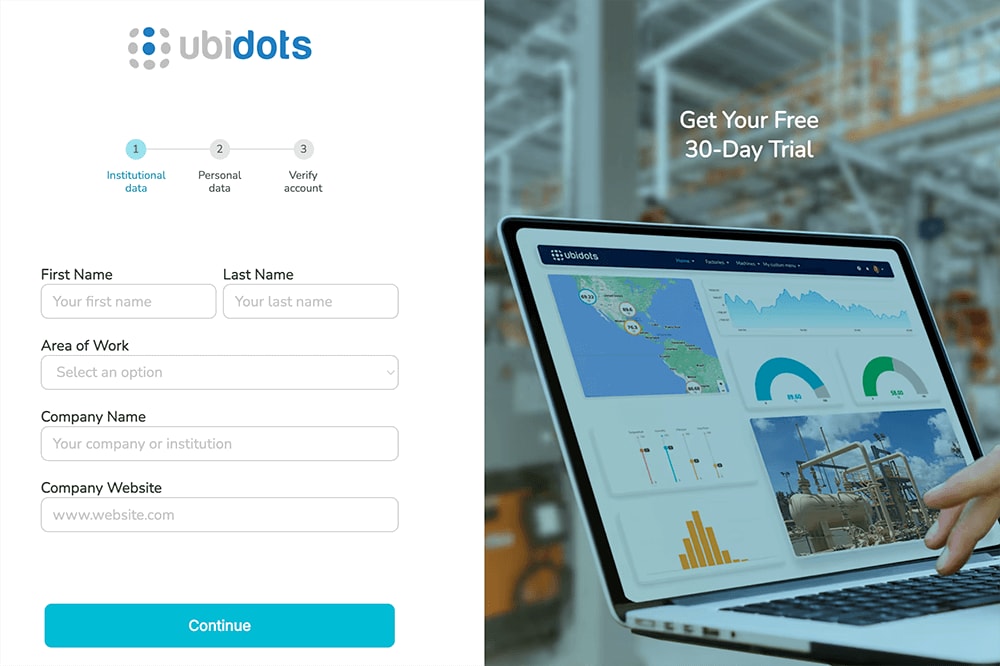

If you don't have one already, you'll first want to create a free 30-day Ubidots trial account. Note that if you attempt to sign up through the Ubidots home page, you will be asked to create either an Educational/Personal account (known as Ubidots STEM) or a Business account. The instructions provided here are specific to the free trial of the Business Account, in order for you to get access to Ubidots full platform scope.

Create a Device to Store Sensor Data

In Ubidots-speak, a device represents a data source that stores your sensor data in variables (which are sets of data points stored within a given Ubidots device).

1. Once you've created your account, navigate to the Devices dashboard and add a new Blank Device.



2. Enter a name and an API label for the device. Please note that API labels for both devices and variables are case-sensitive. Notehub will not preserve casing in the Route URL though, so we recommend using lowercase strings for your labels.



Create a Route in Notehub

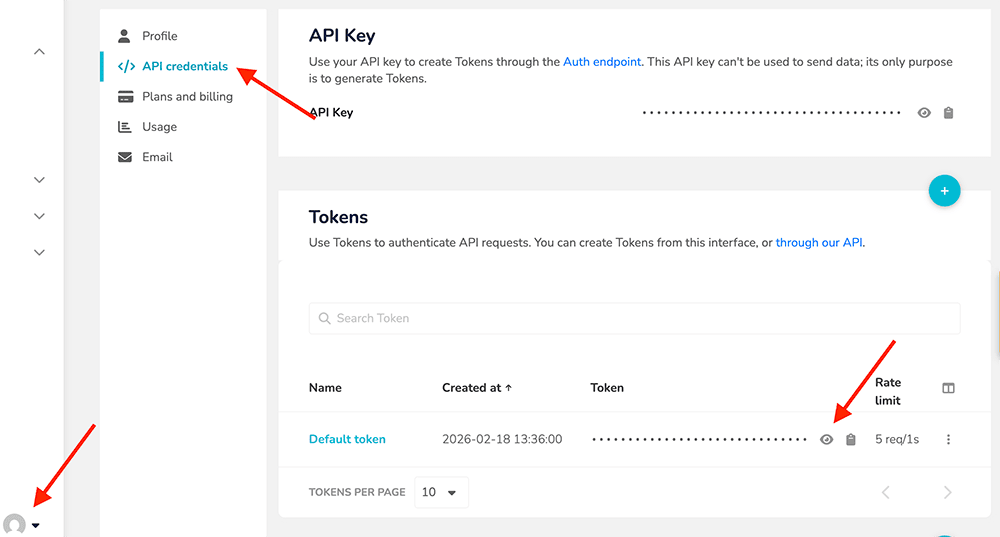

1. To send data to your Ubidots device and variable, you'll need your default token. Click on your profile and choose API Credentials. Copy your default token for the next steps.



2. Back in Notehub, open the Routes dashboard and click the Create Route button.



3. Select the "General HTTP/HTTPS Request/Response" route type.



4. Give the route a name, and for the URL, enter https://industrial.api.ubidots.com/api/v1.6/devices/[device-name]/, substituting in the device name you created earlier (without brackets) — for example, https://industrial.api.ubidots.com/api/v1.6/devices/sensor-data/

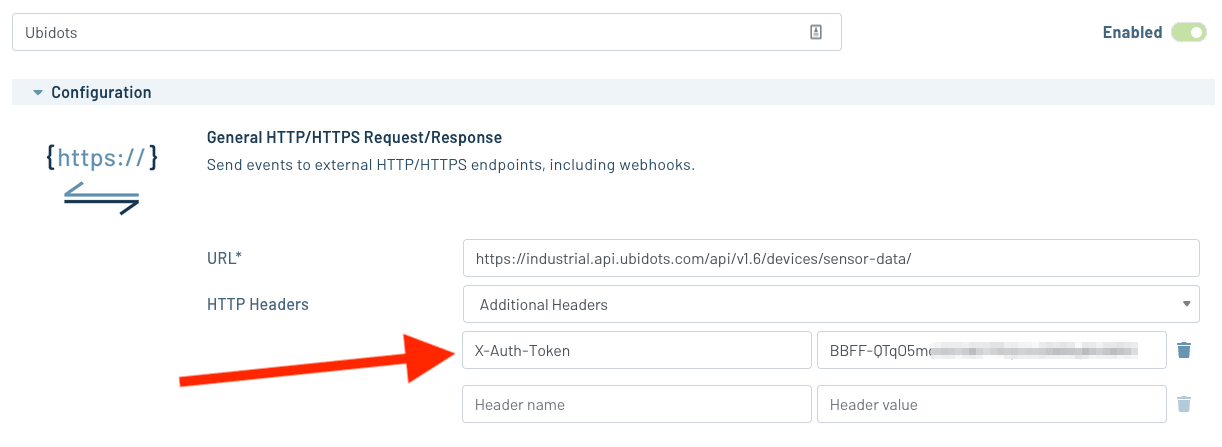

5. For HTTP Headers choose to add Additional Headers. Add a header with a name of X-Auth-Token and a value of the default token you copied earlier.



6. In the Notefiles dropdown, choose Select Notefiles and specify sensors.qo. Then, in the Transform JSON option, select JSONata Expression and enter the following expression.

   JSONATA
   COPY

   {
    "temperature": {"value": body.temp, "timestamp": when * 1000}
   }

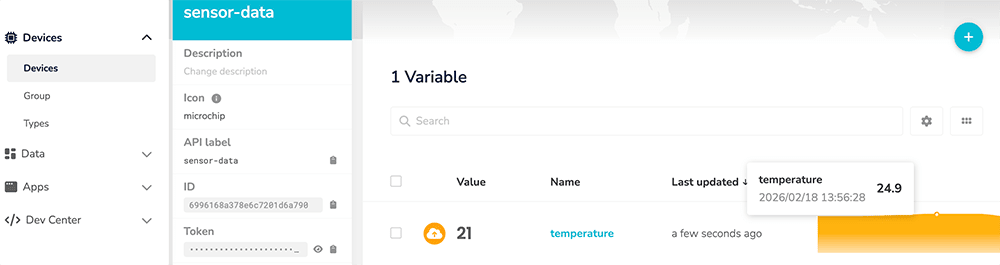

7. Click Create Route and navigate back to your Ubidots dashboard. If everything is wired up correctly, the default data visualization will update with the temperature readings sent from Notehub.



Build Data Visualizations

The default line chart visualization provided by Ubidots is great for a quick read of your temperature sensor data. However, you can also add additional visualizations to your Ubidots dashboard.

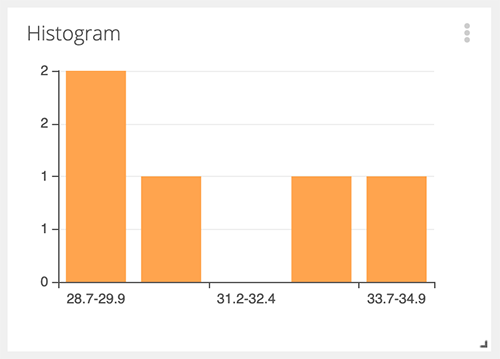

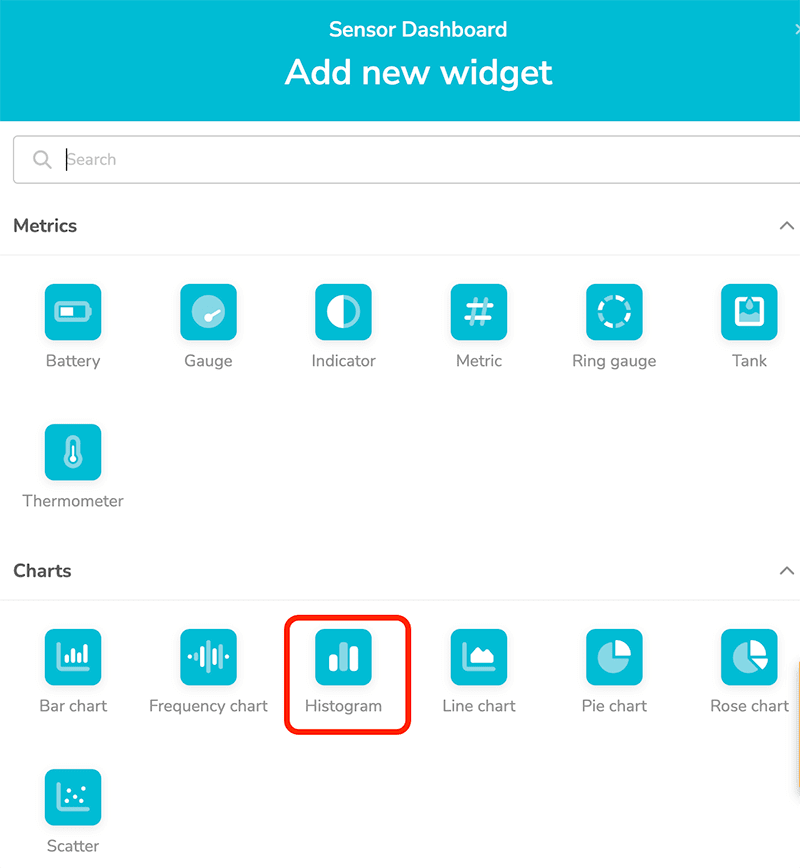

1. Navigate to your main Ubidots dashboard. Click the + icon to Add new widget and choose Histogram. This widget will group your temperature data in a bar chart display so you can see which temperature ranges are most often recorded.

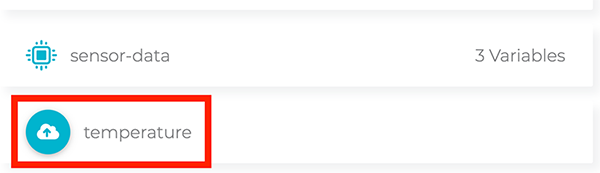

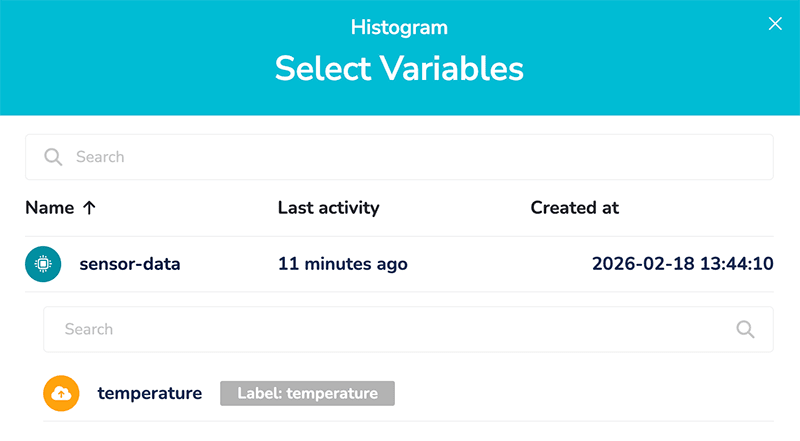

2. In the histogram configuration screen, click on Add Variables and choose the Ubidots variable you'd like to display.



3. Save all of the changes you've made and enjoy your first Ubidots data visualization!



4. Let's build one more data visualization. Again, click the + icon to Add new widget, but this time add a Thermometer.

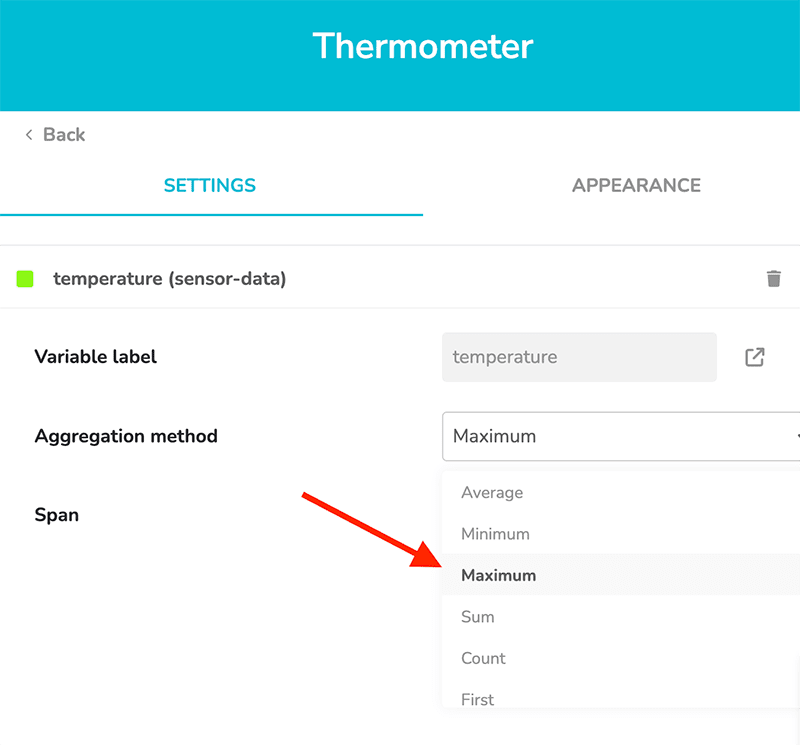

5. Add the Ubidots variable as you did earlier, but this time before saving, look at the Aggregation method dropdown and choose which value you'd like to display.

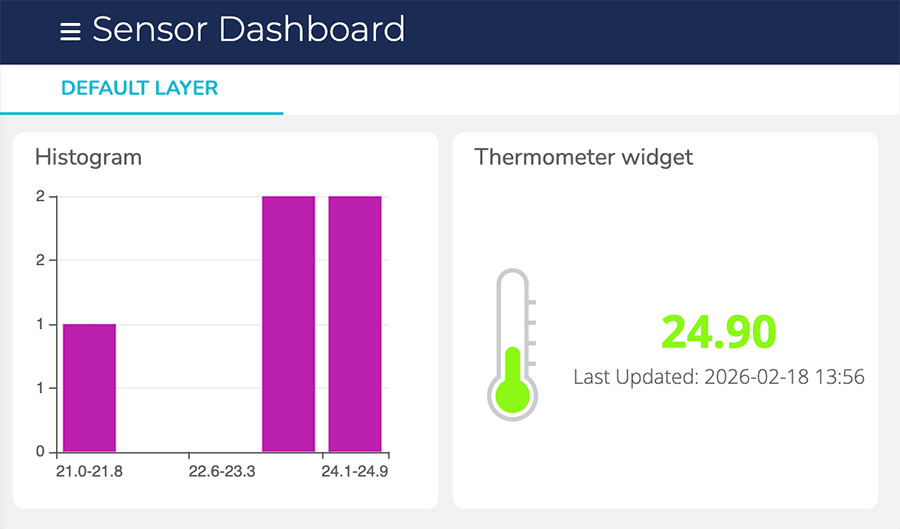

6. Save your changes and enjoy your complete Ubidots data visualization dashboard.



Next Steps

Congratulations! You've created your first Route and connected your Notecard app to an external service.

If you're following the Blues Quickstart, you're done! But we do have some suggestions for next steps:

1. Browse the Blues Accelerators to find purpose-built, free and open source IoT solutions.
2. Bookmark the Notecard API for quick reference.
3. Follow the Notehub Walkthrough to get more out of using Notehub.

At any time, if you find yourself stuck, please reach out on the community forum.
