Notecard Outboard Firmware Update

An increasing number of MCUs produced in the last decade are shipped with their primary bootloaders in ROM, unmodifiable by any user operation. On these devices, including all modern ST Microelectronics and Espressif microcontrollers, when a RESET pin is asserted, the device enters this ROM bootloader. The bootloader can load and execute code from a variety of sources including Flash, RAM, UART, USB, I2C, or SPI. This ROM bootloader's behavior is controlled by actively probing those I/O ports and by sampling the state of "strapping pins" or specially locked "boot option bytes" in flash.

These manufacturer-provided ROM bootloaders present new alternatives for hardware designers - specifically, to perform firmware updates in a manner that is far more flexible in terms of language and RTOS, and far less vulnerable to inadvertent programming bugs.

Beginning with firmware version 3.5.1, Blues Notecard is now capable of utilizing these capabilities of modern MCUs, performing firmware updates "from the outside", and not involving the firmware running on the MCU, whatsoever.

This is called Notecard Outboard Firmware Update (commonly abbreviated as "ODFU" or "NOFU").

Notecard Outboard Firmware Update can update firmware regardless of RTOS or language, and can be used to switch between them, even modifying flash memory layout and partitioning any time after-the-fact, at the developer's discretion.

warning

The maximum size of a host binary file is 1.5 MB for all Notecards, with the following exceptions:

  1. The Notecard WiFi v2 has a maximum of 900KB.
  2. The Notecard LoRa does not support OTA host or Notecard firmware updates.

How It Works

By using the Notecard in conjunction with a modern MCU with a ROM bootloader, you can achieve a far more robust form of firmware update.

At a high-level the process works as follows:

  1. You ensure your hardware is using the required wiring.
  2. You enable Notecard Outboard Firmware Update on your Notecard.
  3. You build your firmware image file.
  4. You upload your firmware on Notehub.
  5. The Notecard downloads the firmware, verifies it, and performs the update.

Let's first look at how you can implement these steps quickly with Blues hardware, and then take a detailed look at how to implement these steps using other compatible hardware options.

Quickstart for Notecarrier F with Swan or Cygnet

This quickstart is provided for users of the STM32-based Blues Swan or Cygnet , and Notecarrier F .

Required Wiring for Blues Hardware

Blues Notecarrier F is pre-configured to work with Notecard Outboard Firmware Update, so no additional wiring is required.

Enable Notecard Outboard Firmware Update with card.dfu

To enable Notecard Outboard Firmware Update, send the following card.dfu request to Notecard:

{"req":"card.dfu", "name":"stm32", "on":true}

Build Your Firmware

Generate a firmware binary for your host using your tooling of choice and identify the location of the .bin output file. If you need help with this step, consult this section below

Next, install the Notecard CLI to use a capability called "binpack". Binpack is used to create a thin wrapper around your binary, which offers protection and enables optimization of binary installation.

Open up a terminal, navigate to the directory of your binary, and issue this command:

notecard -binpack stm32 0x8000000:myfirmware.bin

Once binpack runs, you'll see output like this:

2023-03-06-195216.binpack now incorporates 1 files and is 100980 bytes (14% saved because of compression):

HOST: stm32
LOAD: firmware.bin,0x08000000,0x1c178,0x1c178

Upload Binpacked Binary to Notehub

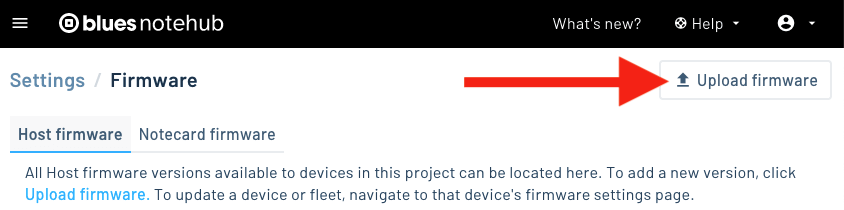

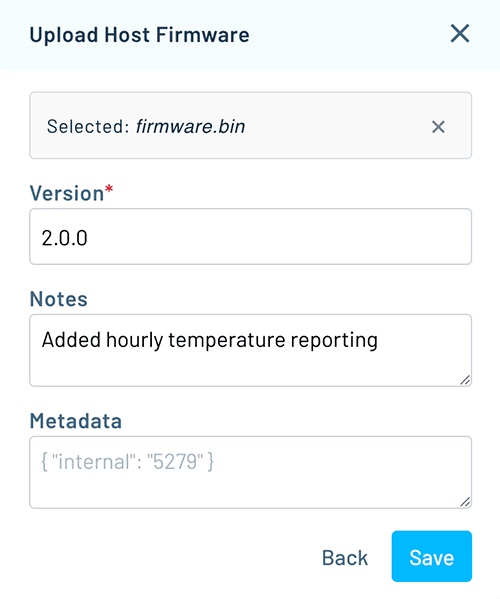

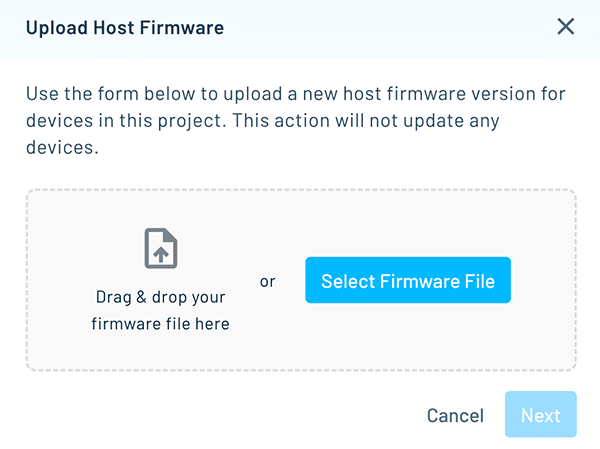

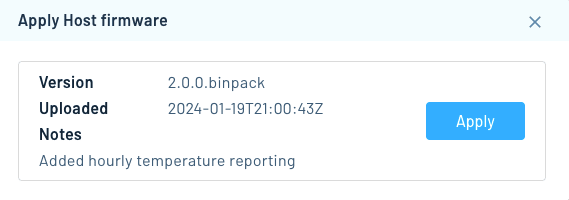

Finish the process by following the instructions provided below to upload the newly binpacked binary to Notehub and deliver it to your devices.

Required Wiring

To take advantage of Notecard Outboard Firmware Update you must lay out several connections between the Notecard's AUX pins and your own host MCU's NRST, BOOT, and UART pins.

The following carriers have the required wiring available out of the box, and are ready-made for using Notecard Outboard Firmware Update:

  • Notecarrier F
  • SparkFun's Cellular Function Board - Blues Wireless Notecarrier

If you're not using a ready-made carrier, you can still utilize Outboard Firmware Update on most modern STM32 and ESP32 hosts. Below examples are shown for the generic pinout required for UART DFU, typically found on the ESP32 and STM32 hosts. Please refer to your specific host's datasheet for the correct pinout required for UART DFU.

Pin Mapping Table

NotecardGeneric MCUESP32STM32
ALT_DFU_ACTIVE (or AUX1 - see note #2 below)------
ALT_DFU_BOOT (or AUX3)B0IO0BOOT0
ALT_DFU_RESET (or AUX4)NRST (an active LOW reset line)ENNRST
ALT_DFU_RX (or AUXRX)TXTXD0USART1_TX
ALT_DFU_TX (or AUXTX)RXRXD0USART1_RX
GNDGNDGNDGND

Pin Mapping Considerations

  1. The ALT_DFU pins are available on the following Notecard SKUs: NOTE-NBGLW, NOTE-NBNAW, NOTE-WBEXW, NOTE-WBNAW, NOTE-WBGLW, NOTE-WBGLWT, NOTE-NBGLN, NOTE-NBNAN, NOTE-WBEXN, NOTE-WBNAN, NOTE-MBNAW, NOTE-MBNAN, NOTE-MBGLN, NOTE-MBGLW, and NOTE-ESP. Other Notecards should use the AUX pins as listed above.

  2. In the context of Notecard Outboard Firmware Update, the Notecard's AUX1 pin represents whether a firmware update is not in progress (NDFU).

    The AUX1 pin is not enabled by default. It must be explicitly enabled by issuing a card.aux request and specifying "mode":"dfu".

    The AUX1 pin has no corresponding pin on the Host MCU; instead, it is used to drive an external multiplexor (or mux). AUX1 is active LOW when a DFU is in progress, otherwise it remains HIGH. See Using DFU Mode for more information.

  3. If you're using a sensor that requires serial TX/RX and have enabled Notecard Outboard Firmware Update using AUXTX/AUXRX, you must connect the sensor to an alternative serial bus. The following options are available using the specified pins:

    HardwareSerial Serial2(A0,A3);
    HardwareSerial Serial3(A5,A4);
  4. When developing with an ESP32-S3 host, avoid using GPIO3, GPIO45, and GPIO46 at all costs. These pins are used to control the strapping behavior of the host, and can cause issues with boot behavior. If you must use these pins, ensure that you only drive them after the host has booted.

warning
  1. Notecard Outboard Firmware Update only functions while the Notecard is in continuous or periodic mode (set via the hub.set API).

  2. Notecard Outboard Firmware Update is only compatible with the following card.aux modes:

    • dfu
    • altdfu
    • neo-monitor
    • off

Notecard Outboard Firmware Update Examples

The following examples provide host-specific code samples for using Notecard Outboard Firmware Update.

  • nRF52840
    • Examples for the Adafruit Feather nRF52840 Express, for Arduino and CircuitPython.
  • STM32
    • Features simple Arduino sketches showing how to enable Notecard Outboard Firmware Updates for the STM32F405 Feather and Micromod STM32 module.
  • Blues Swan
    • Here you'll find basic and more advanced examples for the Swan board implemented across Arduino, CircuitPython and Zephyr.

Enabling Notecard Outboard Firmware Update

In order to use Notecard Outboard Firmware Update you must first configure your Notecard to receive firmware updates.

Firmware is uploaded to Notehub, then downloaded from Notehub to your Notecard, and finally flashed to your host MCU. Each of these steps must be enabled in order for Notecard Outboard Firmware Update to work.

Notehub to Notecard

Downloading firmware from Notehub to the Notecard is enabled by default. Although, you may wish to ensure the transfer is enabled by explicitly sending a dfu.status request to the Notecard.

{
  "req": "dfu.status",
  "on": true
}
J *req = NoteNewRequest("dfu.status");
JAddBoolToObject(req, "on", true);

NoteRequest(req);
req = {"req": "dfu.status"}
req["on"] = True
rsp = card.Transaction(req)

The dfu.status request also accepts a version argument you can use to report more information about your firmware to Notehub. The version argument accepts a simple string (e.g. "1.0.0.0"), and a richer object with detailed information about the firmware running on your device. The richer object is recommended and an example is shown below.

{
  "req": "dfu.status",
  "on": true,
  "version": "{\"org\":\"myorg\",\"product\":\"My Product\",\"description\":\"My description\",\"version\":\"1.0.0\",\"built\":\"Jan 01 2025 01:02:03\",\"ver_major\":1,\"ver_minor\":0,\"ver_patch\":0,\"ver_build\":0,\"builder\":\"My Name\"}"
}
J *req = NoteNewRequest("dfu.status");
JAddBoolToObject(req, "on", true);
JAddStringToObject(req, "version", "{\"org\":\"myorg\",\"product\":\"My Product\",\"description\":\"My description\",\"version\":\"1.0.0\",\"built\":\"Jan 01 2025 01:02:03\",\"ver_major\":1,\"ver_minor\":0,\"ver_patch\":0,\"ver_build\":0,\"builder\":\"My Name\"}");

NoteRequest(req);
req = {"req": "dfu.status"}
req["on"] = True
req["version"] = "{\"org\":\"myorg\",\"product\":\"My Product\",\"description\":\"My description\",\"version\":\"1.0.0\",\"built\":\"Jan 01 2025 01:02:03\",\"ver_major\":1,\"ver_minor\":0,\"ver_patch\":0,\"ver_build\":0,\"builder\":\"My Name\"}"
rsp = card.Transaction(req)

The following code has an implementation of a firmwareVersion function that generates the version argument in the expected format.

// C Helpers to convert a number to a string
#define STRINGIFY(x) STRINGIFY_(x)
#define STRINGIFY_(x) #x

// Definitions used by firmware update
#define PRODUCT_ORG_NAME      "My Organization"
#define PRODUCT_DISPLAY_NAME  "My Product"
#define PRODUCT_FIRMWARE_ID   "my-product"
#define PRODUCT_DESC          "My description"
#define PRODUCT_MAJOR         1
#define PRODUCT_MINOR         0
#define PRODUCT_PATCH         0
#define PRODUCT_BUILD         0
#define PRODUCT_BUILT         __DATE__ " " __TIME__
#define PRODUCT_BUILDER       "My Name"
#define PRODUCT_VERSION       STRINGIFY(PRODUCT_MAJOR) "." STRINGIFY(PRODUCT_MINOR) "." STRINGIFY(PRODUCT_PATCH)

// This is a product configuration JSON structure that enables the Notehub to recognize this
// firmware when it's uploaded, to help keep track of versions and so we only ever download
// firmware builds that are appropriate for this device.
#define QUOTE(x) "\"" x "\""
#define FIRMWARE_VERSION_HEADER "firmware::info:"
#define FIRMWARE_VERSION FIRMWARE_VERSION_HEADER         \
    "{" QUOTE("org") ":" QUOTE(PRODUCT_ORG_NAME)         \
    "," QUOTE("product") ":" QUOTE(PRODUCT_DISPLAY_NAME) \
    "," QUOTE("description") ":" QUOTE(PRODUCT_DESC)     \
    "," QUOTE("firmware") ":" QUOTE(PRODUCT_FIRMWARE_ID) \
    "," QUOTE("version") ":" QUOTE(PRODUCT_VERSION)      \
    "," QUOTE("built") ":" QUOTE(PRODUCT_BUILT)          \
    "," QUOTE("ver_major") ":" STRINGIFY(PRODUCT_MAJOR)  \
    "," QUOTE("ver_minor") ":" STRINGIFY(PRODUCT_MINOR)  \
    "," QUOTE("ver_patch") ":" STRINGIFY(PRODUCT_PATCH)  \
    "," QUOTE("ver_build") ":" STRINGIFY(PRODUCT_BUILD)  \
    "," QUOTE("builder") ":" QUOTE(PRODUCT_BUILDER)      \
    "}"

// Return the firmware's version, which is both stored within the image and which is verified by DFU
const char *firmwareVersion() {
    return &FIRMWARE_VERSION[sizeof(FIRMWARE_VERSION_HEADER)-1];
}
J *req = NoteNewRequest("dfu.status");
JAddBoolToObject(req, "on", true);
JAddStringToObject(req, "version", firmwareVersion());

NoteRequest(req);

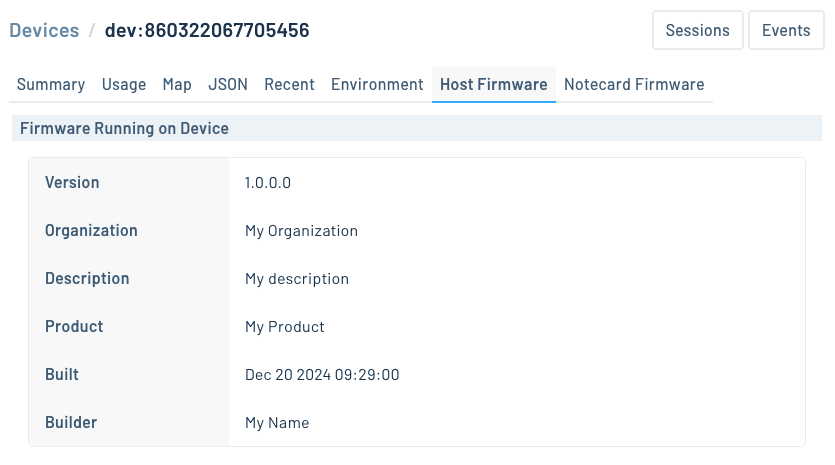

Once provided, the version information you provide displays in the Notehub user interface on your device's Host Firmware tab.

Notehub UI showing the host firmware version

Notecard to Host MCU

To allow the Notecard to flash the host MCU with the downloaded binary use the card.dfu request, setting "name" to the architecture of the host (e.g. stm32, esp32, mcuboot) and "on" to true.

{
  "req": "card.dfu",
  "name": "<host_mcu>",
  "on": true
}
J *req = NoteNewRequest("card.dfu");
JAddStringToObject(req, "name", "<host_mcu>");
JAddBoolToObject(req, "on", true);

NoteRequest(req);
req = {"req": "card.dfu"}
req["name"] = "<host_mcu>"
req["on"] = True
card.Transaction(req)
note

Using STM32 Host with Boot Pin Inverted

By default, the Notecard expects STM32-based hosts to have a boot pin that's assumed to be active high, where high-logic voltage indicates Boot Mode, and low-logic voltage indicates Normal Mode.

If you are using an STM32-based host with a boot pin that's instead assumed to be active low, you can send the card.dfu request a "name" of "stm32-bi" (where "bi" stands for boot inverted), to ensure Notecard Outboard Firmware Update works correctly.

{
  "req": "card.dfu",
  "name": "stm32-bi",
  "on": true
}

Using a Host with MCUboot Support

Support for Notecard Outboard Firmware Update on hosts that use the MCUboot bootloader (e.g. nRF52840) was introduced in Notecard firmware v5.3.1.

{
  "req": "card.dfu",
  "name": "mcuboot"
}

Please consult this example for implementation details.

Now that you've enabled Notecard Outboard Firmware Update, you next need to prepare your firmware image file.

Building a Firmware Image File

In this section you'll learn how to build a firmware image file for use with Notecard Outboard Firmware Update.

Generate/Collect Binaries for your Target Platform

Building your firmware binary itself is not unique to Notecard Outboard Firmware Update. This is the standard creation of a firmware binary that will be deployed to a target device. The only thing new is we will be operating on this binary (.bin) file instead of immediately installing it on the target device.

When using the Arduino IDE, you can find the location of the binary in the final logs of the compilation step, as illustrated below. (If you're not seeing the path in your log, enable verbose logging in your Arduino IDE's settings and build again.)

Arduino IDE compile logs

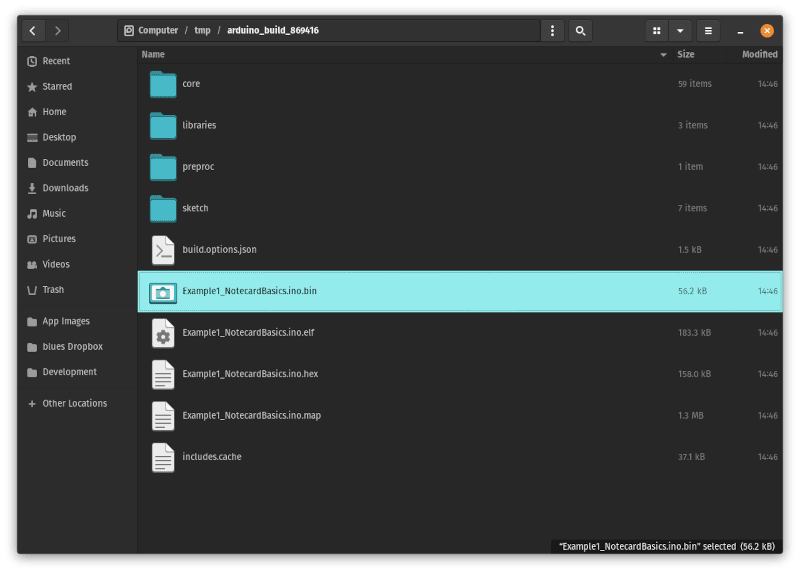

Looking in the folder specified, we will find the .bin file alongside the .elf file mentioned in the build output.

Arduino IDE build output folder

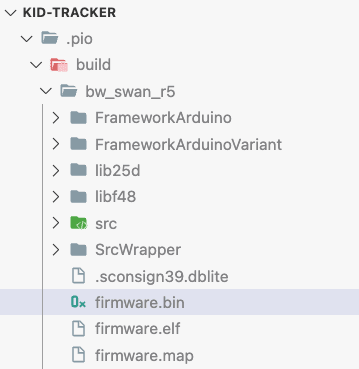

In PlatformIO the built .bin file appears in your project's .pio/build folder.

Firmware location in PlatformIO

Wrapping Binaries Using Binpack

Binpack Overview

The binpack utility is provided through the Notecard CLI. Binpack is used to create a thin wrapper around your binary, which both offers protection and enables optimization of binary installation.

Binpack Construction

The syntax of the binpack utility is as follows:

notecard -binpack <host_arch> <memory_addr>:<binary.bin> [<memory_addr>:<binary.bin> ...]
  • <host_arch> - Replace with the architecture of your host MCU. (See the card.dfu request's name argument for a list of possible values.)
  • <memory_addr> - The address* where the binary should be installed.
  • <binary.bin> - The binary file to package.

* Minimally, the page of memory associated with the address provided will be completely erased and rewritten.

Targeting an STM32 device and performing binpack on the Arduino example provided above would result in the following syntax:

notecard -binpack stm32 0x8000000:Example1_NotecardBasics.ino.bin

After the command executes, you will see output similar to the following:

2022-10-20-205150.binpack now incorporates 1 files and is 28999 bytes:

HOST: stm32
LOAD: Example1_NotecardBasics.ino.bin,0x08000000,0x70a8,0x70a8
INFO: firmware::info:{"org":"My Organization","product":"My Product","description":"My description","firmware":"my-product","version":"1.0.0","built":"Dec 20 2024 10:49:23","ver_major":1,"ver_minor":0,"ver_patch":0,"ver_build":0,"builder":"My Name"}

Alternatively, targeting an ESP32 device and performing binpack on the Arduino example provided above would result in the following syntax:

notecard -binpack esp32 0x10000:Example1_NotecardBasics.ino.bin

The two changes worth noting, are...

  1. The <host_arch> parameter changed from stm32 to esp32
  2. The <memory_addr> parameter changed from 0x8000000 to 0x10000
warning

If using the ESP32C3, the <memory_addr> parameter should be set to 0x00000000.

ESP32 Example

Depending on previous updates and what bootloaders and provisioning tables are on the ESP32, you may need to include this information in the Binpack binary.

See the ESP32 Application Startup Flow documentation for further details.

./notecard -binpack esp32 0x0:./build/bootloader/bootloader.bin 0x8000:./build/partition_table/partition-table.bin 0xd000:./build/ota_data_initial.bin 0x10000:./build/firmware.bin

This example includes 4 elements that are wrapped by Binpack

AddressDescription of binary component
0x0Bootloader
0x8000Partition table
0xd000OTA partition boot selection
0x10000Application firmware

The minimum requirement is the Application firmware to change the application behavior. Depending on how the ESP32 has been flashed previously, or your firmware update strategy, it may require any of the other elements as well.

To learn more about using multiple OTA boot partitions on the ESP32, review ESP32 Over the Air Updates documentation.

Circuit Python Example

A simple binary (.bin) might be stored at 0x08000000 on an STM32, or at 0x10000 on an ESP32. However, let's focus on something slightly more complex, like CircuitPython. CircuitPython is typically configured as a 3-part image containing a UF2 secondary bootloader, a CircuitPython interpreter, and the CircuitPython scripts.

Creating a CircuitPython Script Binary

In order for a CircuitPython script to become a candidate for Binpack, it will first need to be translated from a text file into a binary compatible with the CircuitPython interpreter. To this end, Blues has published a utility, the CircuitPython Filesystem Builder, in order to transform scripts into binaries ready for the interpreter.

Once you have installed the tool following the steps in the README file , you can invoke the tool with the following syntax:

python3 main.py <directory> <output_filename>.cpy
  • <directory> - The directory containing the files to store in the filesystem
  • <output_file> - The file that will ultimately be packaged within the .binpack file

Example:

python3 main.py my_cp_app/ scripts.cpy
note

The .cpy extension is REQUIRED to facilitate the .binpack utility.

Binpack a CircuitPython 3-part Image
notecard -binpack stm32 0x8000000:tinyuf2-swan_r5-0.10.1.bin 0x8010000:circuitpython-swan_r5.bin 0x8100000:scripts.cpy

You can see from the call to the binpack utility, the UF2 bootloader will be loaded at 0x08000000, the CircuitPython interpreter will be loaded at 0x08010000, and the Python script will be loaded at 0x08100000.

Binpack a CircuitPython 2-part Image

Alternatively, CircuitPython can be flashed as a 2-part Image. This can be useful once you have stopped iterating on your firmware, and no longer plan to flash new firmware from a USB connected laptop. The syntax to perform this operation is shown below:

notecard -binpack stm32 0x8000000:circuitpython-swan_r5-nobootloader.bin 0x8100000:scripts.cpy

As you can see, the UF2 bootloader has been elided, and instead the CircuitPython interpreter will be loaded directly at 0x08000000 and the Python script will be loaded at 0x08100000.

Uploading Firmware to Notehub

Now that you've built your firmware image file and your Notecard is ready to receive it, your last step is to upload your firmware to Notehub and send it to your devices.

To do so, first open your Notehub project, click the Firmware link in the project's menu, and then click the Upload firmware button.

The Upload Firmware button location in Notehub

On the next screen upload your firmware binary file, and optionally add any notes that describe the new firmware version.

note

The filename of your binary becomes an identifier used in Notehub, so ensure your binary has a meaningful filename before uploading.

The firmware upload screen with details

Once you have firmware binaries uploaded to Notehub you can apply them to devices. To do so, navigate your Notehub project's Devices page, select the checkbox for one (or more) devices, click the Host Firmware tab, and then click the Update button.

The host firmware tab in Notehub

In the resulting dialog, click Apply on the firmware version that you'd like to apply to your device.

Applying host firmware in Notehub

note

You can also apply firmware updates to devices using the Create DFU Action Notehub API request.

Applying the DFU Action to the Host

Once you've queued up a firmware update in Notehub, the Notecard detects a new host binary is available on its next inbound sync and downloads the firmware into its own flash storage.

The Notecard will then perform a RESET on the host microcontroller, which places it into its ROM bootloader. Then, using a microcontroller-specific communications protocol, the Notecard reprograms the various areas in flash as directed by instructions within the firmware image file, verifies them via MD5 hashes, and restarts the MCU.

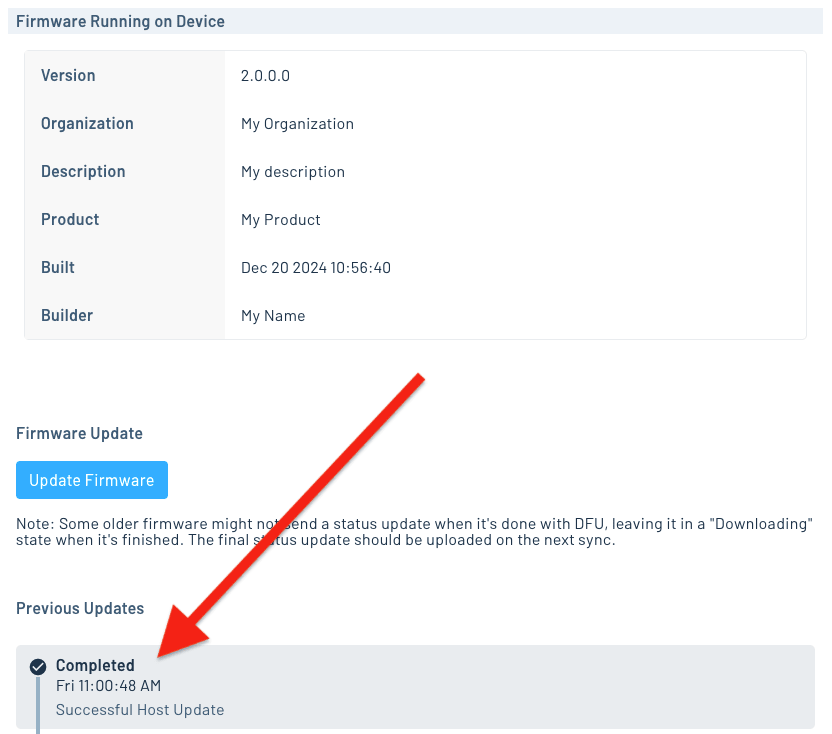

You can monitor the progress of the firmware update on your device's Host Firmware tab in Notehub. When the update completes you'll see a Status of "Completed" as shown below.

Completed firmware progress in Notehub

note

You can also monitor the progress of a DFU action with the Get Devices DFU Status Notehub API request.

note

The firmware update process won't begin until the Notecard next syncs with Notehub. To expedite this process while prototyping, use the hub.set API to set "mode":"continuous" and "sync":true. These settings consume more power to maintain the continuous connection, and should only be used in production deployments on high-power devices.

{
  "req": "hub.set",
  "mode": "continuous",
  "sync": true
}
J *req = NoteNewRequest("hub.set");
JAddStringToObject(req, "mode", "continuous");
JAddBoolToObject(req, "sync", true);

NoteRequest(req);
req = {"req": "hub.set"}
req["mode"] = "continuous"
req["sync"] = True
card.Transaction(req)
Host DFU Overview IAP Firmware Update
Can we improve this page? Send us feedback
© 2025 Blues Inc.
© 2025 Blues Inc.
TermsPrivacy
Notecard Disconnected
Having trouble connecting?

Try changing your USB cable as some cables do not support transferring data. If that does not solve your problem, contact us at support@blues.com and we will get you set up with another tool to communicate with the Notecard.

Advanced Usage

The help command gives more info.

Connect a Notecard
Use USB to connect and start issuing requests from the browser.
Try Notecard Simulator
Experiment with Notecard's latest firmware on a Simulator assigned to your free Notehub account.

Don't have an account? Sign up
