Arduino Library

note-arduino is the official Arduino library for communicating with the Notecard over serial or I2C. The library works on any Arduino compatible microcontroller, and can be installed from the Arduino Library Manager or PlatformIO.

Installation

You can install and use the note-arduino library from Arduino IDE or PlatformIO using the steps below.

    1. Open Arduino IDE.

    2. Click on the Tools > Manage Libraries... menu.

    3. Search for "Blues" in the input box and click the "Install" button next to the "Blues Wireless Notecard" result.

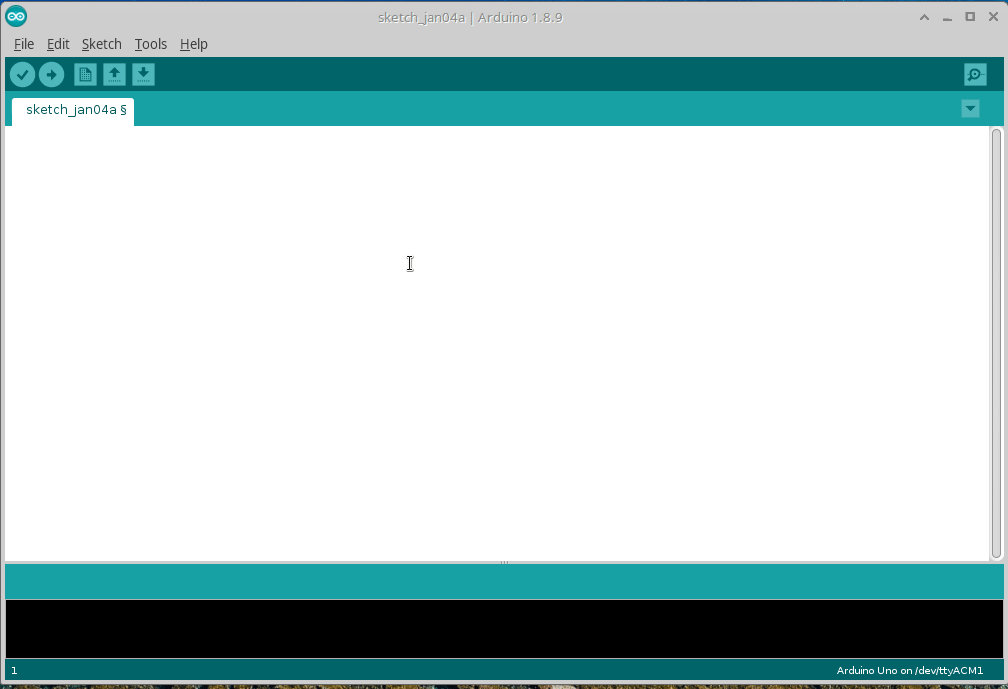

      Installing the Blues Wireless Notecard library.

    1. Open PlatformIO within Visual Studio Code, and click the Libraries menu.

    2. Type "Blues" in the search input.

    3. Click the blue search button.

    4. Click the "Blues Wireless Notecard" result.

      Searching for note-arduino in PlatformIO

    5. Click the Add to Project button, which adds note-arduino to the lib_deps section of your project's platformio.ini file.

      Installing note-arduino in PlatformIO

    Usage

      To use the note-arduino library in Arduino IDE you need to create a new sketch, and then select the Sketch > Include Library > Contributed Libraries > Blues Wireless Notecard menu option, which adds the following include to your sketch:

      #include <Notecard.h>

      To use the note-arduino library in PlatformIO, create a new project (if you haven't already), and then add the following include to the top of your src/main.cpp file.

      #include <Notecard.h>

      With the library included, you next must initialize the Notecard over serial or I2C.

      • Serial Configuration
      • I2C Configuration

      Serial Configuration

      To initialize the Notecard over Serial, instantiate a Notecard object, then use the begin() method and provide the Serial object as a parameter. The Notecard object will initialize the serial bus on your behalf.

      Default Serial Initialization

      Notecard notecard;

      void setup(void) {
          # Initialize Notecard serial interface (with defaults)
          notecard.begin(Serial1);
      }

      Serial Initialization with Baud Rate

      Notecard notecard;

      void setup(void) {
          # Initialize Notecard serial interface
          notecard.begin(Serial1, 9600);
      }

      I2C Configuration

      To initialize the Notecard over I2C, instantiate a Notecard object, then use the begin() method with zero, one, two, or three parameters. Use as many parameters as needed to match your implementation.

      Default I2C Initialization

      Notecard notecard;

      void setup (void) {
          # Initialize Notecard I2C interface (with defaults)
          notecard.begin();
      }

      I2C Initialization with Address

      uint32_t i2cAddress = 0x24;

      Notecard notecard;

      void setup (void) {
          # Initialize Notecard I2C interface
          notecard.begin(i2cAddress);
      }
      note

      By passing an I2C address to notecard.begin() you are not assigning an address to the Notecard. Instead, you are telling the Arduino library to look for a Notecard at an I2C address that you set on the Notecard with a card.io request.

      I2C Initialization with Address and Max Transaction Length

      uint32_t i2cAddress = 0x17;
      uint32_t i2cMax = 32;

      Notecard notecard;

      void setup(void) {
          # Initialize Notecard I2C interface
          notecard.begin(i2cAddress, i2cMax);
      }

      I2C Initialization with Address, Max Transaction Length and I2C Bus

      uint32_t i2cAddress = 0x17;
      uint32_t i2cMax = 32;

      Notecard notecard;

      void setup(void) {
          # Initialize Notecard I2C interface
          notecard.begin(i2cAddress, i2cMax, Wire);
      }

      Debug Mode

      If you're connected to the Serial Monitor (located in the "Tools" menu of Arduino IDE), you can put the Notecard library in debug mode using the setDebugOutputStream method, which will output raw JSON requests and responses.

      #define serialDebug Serial
      Notecard notecard;

      void setup() {
        // Initialize Debug Output
        serialDebug.begin(115200);
        while (!serialDebug) {
          ; // wait for serial port to connect. Needed for native USB
        }
        notecard.setDebugOutputStream(serialDebug);
      }

      Sending Notecard Requests

      Whether using Serial or I2C, sending Notecard requests and reading responses follows the same pattern:

      1. Create a JSON object that includes a valid Notecard API Request.
      2. Call one of the notecard methods and pass in the request JSON object.
      3. If you called a method that returns a response, make sure the response contains the data you need.
      #define productUID "com.your-company.your-name:your_product"
      Notecard notecard;

      void setup() {
          J *req = notecard.newRequest("hub.set");
          if (req) {
              JAddStringToObject(req, "product", productUID);
              JAddStringToObject(req, "mode", "continuous");
              JAddBoolToObject(req, "sync", true);
              if (!notecard.sendRequest(req)) {
                  notecard.logDebug("FATAL: Failed to configure Notecard!\n");
                  while(1);
              }
          }
      }

      notecard Methods

      The Notecard provides a variety of methods for performing requests.

      • newRequest() creates a JSON (J) object for the specified Notecard request. This method returns a JSON object with the req key set.
      J *req = notecard.newRequest("card.status");
      • sendRequest() sends a JSON (J) request to the Notecard.
      J *req = notecard.newRequest("hub.sync");
      if (req) {
          notecard.sendRequest(req);
      }
      • requestAndResponse() sends a JSON (J) request to the Notecard, and additionally returns the Notecard's JSON response in a J object that you can parse.
      J *req = notecard.newRequest("card.status");
      if (req) {
          J* rsp = notecard.requestAndResponse(req);
          // do something with the response
          notecard.deleteResponse(rsp);
      }
      note

      In some situations, you may need to send the Notecard a request and you cannot receive a response. For example, when using card.attn request's sleep argument to disable a host MCU, the host will be disabled and incapable of receiving a response.

      For these scenarios the note-arduino library provides a newCommand method. The newCommand method creates a new JSON (J) object for sending the Notecard a command rather than a request. You can send commands to the Notecard using the same sendRequest method you use for requests.

      J *cmd = notecard.newCommand("card.attn");
      if (cmd) {
          JAddStringToObject(cmd, "mode", "sleep");
          JAddNumberToObject(cmd, "seconds", 3600);
          notecard.sendRequest(cmd);
      }

      JSON Handling

      The note-arduino library uses a J JSON object for many of its APIs, and provides a number of functions for helping you create and parse J JSON objects.

      Creating JSON Objects

      The note-arduino library's sendRequest and requestAndResponse functions both expect a J JSON object as an argument. You can create the initial J object with a call to newRequest, which allocates the appropriate memory and returns a JSON object that contains a "req" key-value pair.

      J *req = notecard.newRequest("example.request");
      if (req) {
          // At this point req represents a JSON object with the structure:
          // { "req": "example.request" }
      }

      From there, the following functions are available for helping you populate your JSON object with the data you need.

      • JAddBoolToObject
      • JAddNumberToObject
      • JAddStringToObject
      • JAddObjectToObject
      • JAddArrayToObject
      • JAddItemToArray

      To see how to use these functions, suppose you need to create a J JSON object that contains the following JSON data.

      {
          "req": "example.request",
          "key-1": true,
          "key-2": 2,
          "key-3", "3",
          "key-4": {
              "key-a": ["a"]
          }
      }

      The code below constructs the above JSON structure, and then passes that object to the Notecard using sendRequest.

      J *req = notecard.newRequest("example.request");
      if (req) {
          JAddBoolToObject(req, "key-1", true);
          JAddNumberToObject(req, "key-2", 2);
          JAddStringToObject(req, "key-3", "3");
          J* key4 = JAddObjectToObject(req, "key-4");
          J* keyA = JAddArrayToObject(key4, "key-a");
          JAddItemToArray(keyA, JCreateString("a"));

          notecard.sendRequest(req);
      }
      note

      The note-arduino library includes several functions for creating "items" of a JSON object, such as JCreateArray, JCreateObject, JCreateNumber, JCreateBool, and JCreateString.

      You only need these functions if you're using an API that requires a JSON item as an argument, such as JAddItemToArray.

      Parsing JSON Objects

      The note-arduino library's requestAndResponse function returns a J JSON object that contains response data from the Notecard. For example, the code below calls performs a card.status request on the Notecard, and and stores the returned data in a J object.

      if (J *req = notecard.newRequest("card.status")) {
          J *rsp = notecard.requestAndResponse(req);
          notecard.logDebug(JConvertToJSONString(rsp));
          notecard.deleteResponse(rsp);
      }

      After requestAndResponse runs, the JSON that rsp points at will have the structure below.

      {
        "connected": true,
        "status": "{normal}",
        "storage": 2,
        "time": 1667924973,
        "cell": true
      }

      There are a number of functions you can use to parse individual fields out of a JSON object.

      • JIsPresent
      • JGetBool
      • JGetInt
      • JGetNumber
      • JGetObject
      • JGetString

      For example, the following code shows an example of how to access fields from the card.status response.

      char status[20];
      if (J *req = notecard.newRequest("card.status")) {
          J *rsp = notecard.requestAndResponse(req);
          notecard.logDebug(JConvertToJSONString(rsp));

          bool connected = JGetBool(rsp, "connected");
          char *tempStatus = JGetString(rsp, "status");
          strlcpy(status, tempStatus, sizeof(status));
          int storage = JGetInt(rsp, "storage");
          int time = JGetInt(rsp, "time");
          bool cell = JGetBool(rsp, "cell");

          notecard.deleteResponse(rsp);
      }

      When the response contains nested objects you can parse them using JGetObject. For example, the file.changes request returns a JSON object with a structure that looks like the one below.

      {
          "info": {
              "data.qo": {
                  "total": 1
              },
              "data.qi":{
                  "total": 2
              },
              "total": 3
          }
      }

      Given this response, you could use the following code to parse out the total from within the "data.qo" object.

      if (J *req = notecard.newRequest("file.changes")) {
          J *rsp = notecard.requestAndResponse(req);
          notecard.logDebug(JConvertToJSONString(rsp));

          J *info = JGetObject(rsp, "info");
          J *data = JGetObject(info, "data.qo");
          int total = JGetInt(data, "total");
          notecard.logDebugf("Total: %d", total); // 1

          notecard.deleteResponse(rsp);
      }

      Examples

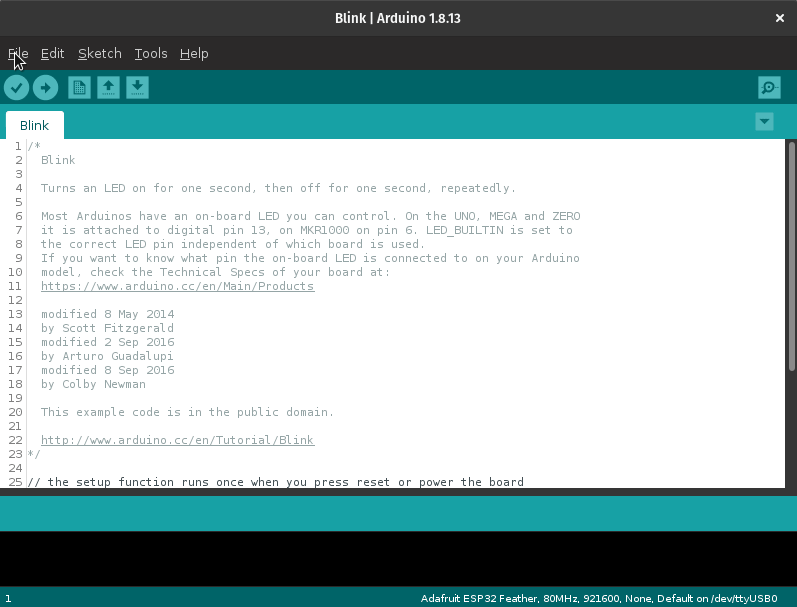

      We provide several examples for using note-arduino in a number of different scenarios. If you're using Arduino IDE you can access the examples from the File > Examples > Blues Wireless Notecard menu.

      Arduino Examples

      If you're using PlatformIO you can copy the source code for the examples from the links below.

      • Example 0: Libraryless Communication
        • Learn how to communicate with a Notecard in Arduino without using the note-arduino library.
      • Example 1: Notecard Basics
        • Learn the basics of communicating with a Notecard, including running a hub.set and note.add request.
      • Example 2: Periodic Communications
        • Learn how to communicate with a Notecard in periodic mode, gathering sensor measurements "offline", and performing uploads on a periodic basis.
      • Example 3: Inbound Polling
        • Learn how to use the Notecard to poll for inbound messages at a defined interval.
      • Example 4: Inbound Interrupts
        • Learn how to use the Notecard to manage an inbound queue of messages using interrupts.
      • Example 5: Using Templates
        • Learn how to use Note templates to send outbound Notes that use minimal bandwidth.
      • Example 6: Sensor Tutorial
        • Learn how to collect sensor data and send it to the cloud using the Notecard. This code is also used by the sensor tutorial.
      • Example 7: Power Control
        • Learn how the Notecard can be used to put a host to sleep, save some state for the host, wake it up periodically and return saved state to the host.

      API Reference

      Library Classes

      ClassUsageDescription
      class Notecard#include "Notecard.h"Class that stores state and functions for interacting with the Blues Wireless Notecard.

      Notecard Class Reference

      The class that stores state and functions for interacting with the Blues Wireless Notecard.

      Class Notecard

      MethodDescription
      public void begin (uint32_t i2cAddress,uint32_t i2cMax, TwoWire & wirePort)Initialize the Notecard for I2C. This function configures the Notecard to use the I2C bus for communication with the host.
      public void begin (HardwareSerial & serial, int speed)Initialize the Notecard for Serial communication. This function configures the Notecard to use Serial for communication with the host.
      public void setDebugOutputStream (Stream & dbgserial)Set the debug output source. This function takes a Stream object (for example, Serial) and configures it as a source for writing debug messages during development.
      public void clearDebugOutputStream (void)Clear the debug output source.
      public J * newRequest (const char * request)Creates a new request object for population by the host. This function accepts a request string (for example, "note.add") and initializes a JSON Object to return to the host.
      public J * newCommand (const char * command)Creates a new command object for population by the host. This function accepts a command string (for example, "note.add") and initializes a JSON Object to return to the host.
      public bool sendRequest (J * req)Sends a request to the Notecard. This function takes a populated J JSON request object and sends it to the Notecard.
      public J * requestAndResponse (J * req)Sends a request to the Notecard and returns the JSON Response. This function takes a populated J JSON request object and sends it to the Notecard.
      public void deleteResponse (J * rsp)Deletes a J JSON response object from memory.
      public void logDebug (const char * message)Write a message to the serial debug stream.
      public void logDebugf (const char * format,...)Write a formatted message to the serial debug stream.
      public bool debugSyncStatus (int pollFrequencyMs,int maxLevel)Periodically show Notecard sync status, returning true if something was displayed to the debug stream.
      public bool responseError (J * rsp)Determines if there is an error string present in a response object.

      begin (I2C)

      Initialize the Notecard for I2C. This function configures the Notecard to use the I2C bus for communication with the host.

      Arguments

      i2caddress

      uint32_t (optional)

      The I2C Address to use for the Notecard.

      (default value: NOTE_I2C_ADDR_DEFAULT)

      i2cmax

      uint32_t (optional)

      The max length of each message to send from the host to the Notecard. Used to ensure the messages are sized appropriately for the host.

      (default value: NOTE_I2C_MAX_DEFAULT)

      wirePort

      TwoWire class instance (optional)

      The TwoWire implementation to use for I2C communication.

      (default value: Wire)

        Notecard notecard;
        ...

        // Initialize I2C using default parameters
        notecard.begin();
        Notecard notecard;
        ...

        // Initialize I2C specifying all parameters
        notecard.begin(0x17, 30, Wire);

        begin (Serial)

        Initialize the Notecard for Serial communication. This function configures the Notecard to use Serial for communication with the host.

        Arguments

        selectedSerialPort

        HardwareSerial class instance

        The HardwareSerial bus to use.

        selectedSpeed

        int

        The baud rate to use for communicating with the Notecard from the host.

        (default value: 9600) (optional)

          Notecard notecard;
          ...

          // Initialize Serial using default parameters
          notecard.begin(Serial1);
          Notecard notecard;
          ...

          // Initialize Serial specifying all parameters
          notecard.begin(Serial1, 9600);

          setDebugOutputStream

          Set the debug output source. This function takes a Stream object (for example, Serial) and configures it as a source for writing debug messages during development.

          Arguments

          dbgserial

          Stream interface instance

          The Stream object to use for debug output.

            Notecard notecard;
            ...

            notecard.setDebugOutputStream(Serial);

            clearDebugOutputStream

            Clear the debug output source.

            Arguments
            None
              Notecard notecard;
              ...

              notecard.clearDebugOutputStream();

              newRequest

              Creates a new request object for population by the host. This function accepts a request string (for example, "note.add") and initializes a JSON object to return to the host.

              note

              The newRequest function allocates memory to create a JSON object, which can fail if system resources are low. We recommend using the following pattern to check for this condition, which works because newRequest returns nullptr if the request fails.

              if (J *req = notecard.newRequest("hub.sync")) {
                ...
              }
              Arguments

              request

              const char *

              The request name, for example, note.add.

                Notecard notecard;
                ...

                J *req = notecard.newRequest("card.status");

                Returns

                A pointer to a J JSON Object populated with the request name.

                See also

                • requestAndResponse()
                • sendRequest()

                newCommand

                Creates a new command object for population by the host. This function accepts a command string (for example, "note.add") and initializes a JSON object to return to the host.

                note

                The newCommand function allocates memory to create a JSON object, which can fail if system resources are low. We recommend using the following pattern to check for this condition, which works because newCommand returns nullptr if the request fails.

                if (J *req = notecard.newCommand("hub.sync")) {
                  ...
                }
                Arguments

                request

                const char *

                The command name, for example, note.add.

                  Notecard notecard;
                  ...

                  J *req = notecard.newCommand("card.status");

                  Returns

                  A pointer to a J JSON Object populated with the request name.

                  See also

                  • sendRequest()

                  sendRequest

                  Sends a request to the Notecard. This function takes a populated J JSON request object and sends it to the Notecard.

                  Arguments

                  req

                  J * class instance pointer

                  A pointer to a J * JSON request object.

                    Notecard notecard;
                    ...

                    if (J *req = notecard.newRequest("hub.sync")) {
                        notecard.sendRequest(req);
                    }

                    Returns

                    true if the message was successfully sent to the Notecard, false if there was an error.

                    See also

                    • newRequest()

                    requestAndResponse

                    Sends a request to the Notecard and returns the JSON Response. This function takes a populated J JSON request object and sends it to the Notecard.

                    Arguments

                    req

                    J * class instance pointer

                    A pointer to a J * JSON request object.

                      Notecard notecard;
                      ...

                      if (J *req = notecard.newRequest("card.status")) {
                          J *rsp = notecard.requestAndResponse(req);
                          notecard.logDebug(JConvertToJSONString(rsp));
                          notecard.deleteResponse(rsp);
                      }

                      Returns

                      J * JSON object pointer with the response from the Notecard.

                      See also

                      • deleteResponse()
                      • newRequest()
                      warning

                      You are responsible for managing the memory associated with the JSON response object.

                      deleteResponse

                      Deletes a J JSON response object from memory.

                      Arguments

                      rsp

                      J * class instance pointer

                      A pointer to a J JSON response object.

                        Notecard notecard;
                        ...

                        if (J *req = notecard.newRequest("card.status")) {
                            J *rsp = notecard.requestAndResponse(req);
                            notecard.logDebug(JConvertToJSONString(rsp));
                            notecard.deleteResponse(rsp);
                        }

                        See also

                        • requestAndResponse()

                        logDebug

                        Write a message to the serial debug stream.

                        Arguments

                        message

                        const char *

                        A string to log to the serial debug stream.

                          Notecard notecard;
                          ...

                          notecard.logDebug("Hello, World!\n");

                          logDebugf

                          Write a formatted message to the serial debug stream.

                          Arguments

                          format

                          A format string to log to the serial debug stream.

                          ... (variadic)

                          One or more values to interpolate into the format string.

                            Notecard notecard;
                            bool excited;
                            ...

                            notecard.logDebugf("High-%d!\n", (excited ? 10 : 5));

                            debugSyncStatus

                            Periodically show Notecard sync status, returning true if something was displayed to the debug stream.

                            Arguments

                            pollFrequencyMs

                            int

                            The frequency to poll the Notecard for sync status.

                            maxLevel

                            int

                            The maximum log level to output to the debug console. Pass -1 for all.

                            Supported logging levels:

                            0 - Major
                            1 - Minor
                            2 - Detailed
                            3 - Programmatic

                              Notecard notecard;
                              ...

                              // Poll for programmatic level (3) sync status every 1.5s (1500ms)
                              notecard.debugSyncStatus(1500, 3);

                              Returns

                              true if a pending response was displayed to the debug stream.

                              warning

                              Specific log messages are NOT considered to be part of the stable API, and therefore should NEVER be programmed against. There is no guarantee of consistency of message or logging level for any given message.

                              responseError

                              Determines if there is an error string present in a response object.

                              Arguments

                              rsp

                              J * class instance pointer

                              A pointer to a J JSON response object.

                                Notecard notecard;
                                ...

                                if (J *req = notecard.newRequest("card.status")) {
                                    J *rsp = notecard.requestAndResponse(req);
                                    if (notecard.responseError(rsp)) {
                                        notecard.logDebug("Error response returned!");
                                    } else {
                                        // process response
                                    }
                                    notecard.deleteResponse(rsp);
                                }

                                Returns

                                true if the response object contains an error.
