Functional Description
Notecarriers are available in multiple form factors to support rapid development across a range of use cases. Depending on the variant, a Notecarrier may prioritize direct host integration, compact size, integrated cellular/Wi-Fi and GNSS antennas, or the ability to be soldered directly into a low-volume production design.
Notecarriers are explicitly designed to bridge the gap between early prototyping and a production-ready Notecard-based solution. In a final product, the Notecard is typically socketed directly onto a custom PCB via an edge connector, alongside the customer's MCU, sensors, and supporting circuitry. While this approach provides maximum flexibility and modularity, it can significantly increase the effort required during initial development and validation.
To simplify this process, Notecarriers expose the Notecard's interfaces through convenient breakout connections and integrate essential supporting circuitry, including power regulation, protection, and signal conditioning. This allows developers to focus on firmware, connectivity, and system behavior without first designing a complete custom carrier board.
Features
- Simple. Provides breadboard compatible pins or solderable mask for direct connections.
- Compatible. Level shifters ensure compatibility with 3.3V or 5V equipment.
- Convenient. Powered by a USB connector (requires 2A supply).
- GPS Ready. Models are either active GPS compatible, or feature a built-in antenna to enable GNSS connectivity.
Compatible Notecards
Due to differences in the physical size of Notecards, certain Notecarriers are only compatible with certain Notecards. However, the Notecarrier X v1.2 is compatible with all available Notecards:
Package Configuration

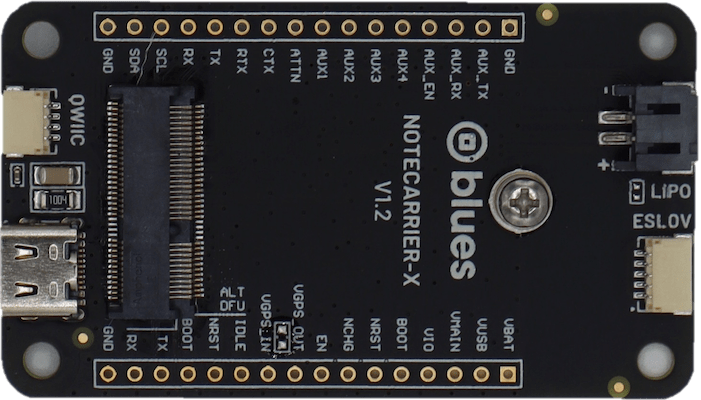

Notecarrier X v1.2
Notecarrier X is a small form-factor Notecarrier, only slightly larger than the Notecard itself. The Notecarrier X is our most capable small-form factor Notecarrier with JST connectors for LiPo battery and charging support, as well as Qwiic and ESLOV ports for connecting the Notecard to host MCUs over I2C.

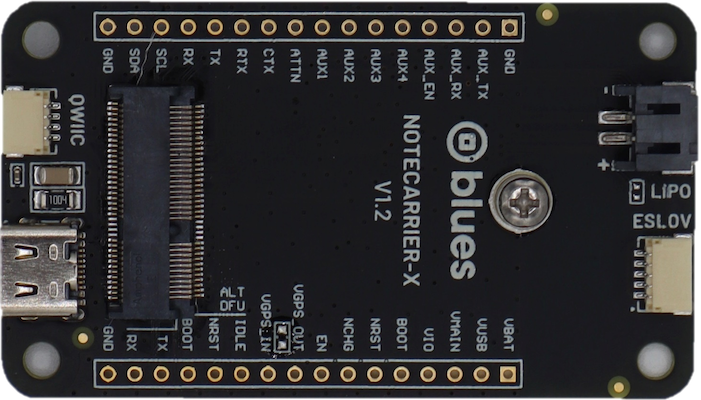

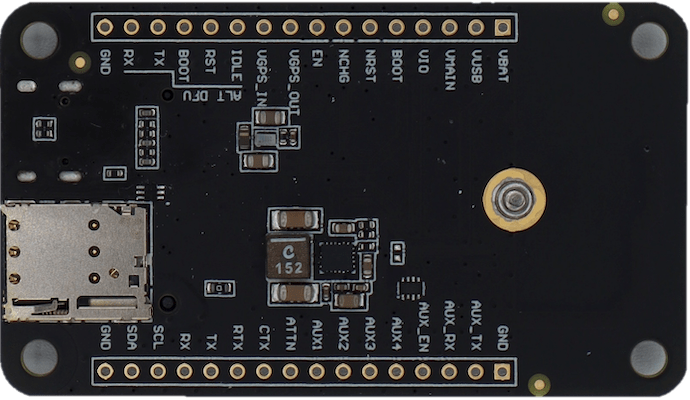

| Front | Back |
|---|---|
 |  |
-
Notecard edge connector socket and mounting screw receptacle.
-
USB-C port to power Notecarrier and provide a USB Serial command interface to Notecard.
-
Requires user provided U.FL cellular/Wi-Fi antenna and optional U.FL active GPS antenna.
-
JST PH connector for a LiPo battery.
-
Qwiic connector for connecting I2C peripherals.
-
ESLOV connector for connecting I2C peripherals. ESLOV exposes an additional GPIO pin which is connected to the Notecard's ATTN pin.
-
LiPo charging circuit.
-
External Nano-SIM slot for use of an optional secondary SIM.
-
PCB Dimensions: 66mm x 38mm
-
Center of Mounting Holes: 62mm x 34mm (measured from the edge of the PCB to the center of the furthest mounting hole)
Power Information
All Notecarriers can be powered by connecting directly to the USB port. However, most installations will not have USB power available, so several alternate power options are provided by the various Notecarrier models:
-
attaching a LiPo battery.
The LiPo battery must be a single-cell 3.7V battery with a 2-pin JST PH connector.
-
applying 2.5-5.5VDC to the
VBATorVMAINpins.Commonly provided via DC power supply or non-rechargeable battery.
warningTypical USB ports may only be capable of supplying 500 mA of current, which might not be enough to power Notecard during a cellular connection to a GSM network (which can spike to 2A). In this situation, you're advised to supplement power to your Notecarrier with an external source (e.g. a LiPo battery).
GPS (GNSS) Antenna Requirements
All Notecarrier models are designed to support active GPS, and several Notecarrier models provide built-in antennas ready to be connected to a Cellular Notecard using the included u.FL cables.
Enabling Active GPS
If using Notecarrier X v1.2 with an active GPS antenna, add a 0-Ohm 0603
jumper to the unpopulated spot between VGPS_OUT and VGPS_IN. This will power
an active GPS LNA with a 3.8VDC bias voltage on the center conductor of its GPS
u.FL connector.
Header Descriptions
Notecarrier X v1.2 Dual 16-pin Headers
| Pin Name | Direction | Usage | Usage | Direction | Pin Name | |
|---|---|---|---|---|---|---|
| GND | IN | Ground | Direct connect to the + pin of the battery connector | IN/OUT | VBAT | |
| AUX_TX | OUT | High-speed diagnostic interface | Direct connect to VUSB pin of the USB connector | IN/OUT | VUSB | |
| AUX_RX | IN | High-speed diagnostic interface | Diode union of VUSB and VBAT sources | OUT | VMAIN | |
| AUX_EN | IN | Enable diagnostics | Digital I/O voltage source with 100mA available | OUT | VIO | |
| AUX4 | IN/OUT | API-selectable modes of operation | Access to Notecard boot pin | IN | BOOT | |
| AUX3 | IN/OUT | API-selectable modes of operation | For development use only: MUST normally be NC or High Impedance and must never be pulled to GND. A VIO-level pulse of >250ms will reset the Notecard | IN | NRST | |
| AUX2 | IN/OUT | API-selectable modes of operation | Active LOW when charging attached LiPo | OUT | NCHG | |
| AUX1 | IN/OUT | API-selectable modes of operation | For On/Off switching of customer product. Leave NC or connect to a physical switch or Open Drain output. Notecard will be OFF if pulled to GND. Never apply positive voltage to this pin. | IN | EN | |
| ATTN | OUT | Configurable interrupt signal | Active antenna GPS 3.8V from Notecard | OUT | VGPS_OUT | |
| CTX | IN | Clear to transmit | Active antenna GPS bias voltage | IN | VGPS_IN | |
| RTX | OUT | Request to transmit | Active LOW when ALTDFU is active | OUT | IDLE | |
| TX | OUT | UART serial transmit request interface | Allows Notecard to toggle host active LOW reset pin ALTDFU | IN | NRST | |
| RX | IN | UART serial receive request interface (Notecard has onboard 10K pull-up resistors) | Allows Notecard to toggle host BOOT pin ALTDFU | IN | BOOT | |
| SCL | IN/OUT | I2C clock request interface (Notecard has onboard 10K pull-up resistors) | UART serial transmit request interface, specifically used to program the host MCU. ALTDFU | OUT | TX | |
| SDA | IN/OUT | I2C data request interface (Notecard has onboard 10K pull-up resistors) | UART serial transmit request interface, specifically used to program the host MCU. ALTDFU | IN | RX | |
| GND | IN | Ground | Ground | IN | GND |
Specifications
Electrical Characteristics
DC Characteristics
| Description | Minimum | Maximum | Unit |
|---|---|---|---|
| Supply Voltage | 2.5 | 5.5 | V |
| Supply Current | 500 | 2000 | mA |
Absolute Maximum Ratings
| Description | Minimum | Maximum | Unit |
|---|---|---|---|
| Storage temperature | -35 | 70 | °C |
noteActual values may vary based on local conditions such as atmospheric conditions and distance to the cell tower.
Ordering Information
Design Files
Open source hardware designs for all Notecarriers are maintained in the note-hardware GitHub repository.
