Storing Device State with DB Notefiles

A DB Notefile is a database of Notes that is bidirectionally replicated between a Notecard and Notehub. Each Note has a name and a JSON body, and both the device and the cloud can read and update it.

DB Notefiles are ideal for storing per-device state that can be changed both on the device and in the cloud.

Consider a smart thermostat, whose temperature, mode, and schedule can be updated either on the physical device, or through a cloud-based app. Because both sides must stay synchronized, this type of per-device state is a perfect fit for a DB Notefile.

This table summarizes where DB Notefiles fit among Notecard's data-management options:

The rest of this guide works through a connected thermostat that uses every row of this table: when to reach for DB Notefiles, how to simplify them with the var API, and how to use local-only .dbx Notefiles as a persistent key-value store that never syncs.

When to Use DB Notefiles

Notecard offers two built-in mechanisms for managing values that live on both a device and in the cloud — environment variables and DB Notefiles — and choosing between them is the most common point of confusion when designing a connected product. This distinction is a good way to decide:

• Environment variables answer "what should these devices do?" They are configuration and policy, managed in Notehub, that flows down to devices through a hierarchy of Project, Fleet, and Device scopes. Their values are always strings.
• DB Notefiles answer "what is the current state of this device?" They are per-device values, owned jointly by the device and the cloud, that either side can read and write. Their values are Notes with structured JSON bodies.

Here is how you could apply this distinction to a the smart-thermostat example:

A few additional rules of thumb:

• If a value should apply to many devices at once, it's an environment variable. There is no fleet-level equivalent for DB Notefiles — each device's DB Notefiles are replicated with that device alone.
• If a value is regularly written by the device and read by the cloud (or vice versa), it's a DB Notefile. Environment variables are designed to flow from Notehub to devices.
• If a value needs a structured body, numeric or boolean types, or multiple fields, it's a DB Notefile. Environment variable values are strings.
• If a value is an event — something that happened at a moment in time rather than a current condition — it belongs in a queue Notefile, not a DB Notefile.

Storing Simple Values with the var API

Much of a device's state consists of single, simple values—for example, the thermostat's target temperature is a number, and its operating mode is a string. For values like these, the var requests provide the simplest way to use a DB Notefile: var.set, var.get, and var.delete are shorthand for the underlying note.update, note.get, and note.delete requests, where the variable's name is the Note ID and the value is stored in the Note's body.

By default, variables live in a DB Notefile named vars.db, which the Notecard creates automatically the first time you set a variable. (You can target a different DB Notefile with the file argument.) Because vars.db is a regular .db Notefile, every variable you set is replicated to Notehub, where you can view and change it.

A variable holds one of three typed fields: text for strings, value for numbers, and flag for booleans. Here's how the thermostat firmware could store two state values, a number for target temperature (target_temp) and a string for operating mode (mode).

{
  "req": "var.set",
  "name": "target_temp",
  "value": 21.5
}

J *req = notecard.newRequest("var.set");
JAddStringToObject(req, "name", "target_temp");
JAddNumberToObject(req, "value", 21.5);

notecard.sendRequest(req);

req = {"req": "var.set"}
req["name"] = "target_temp"
req["value"] = 21.5

card.Transaction(req)

{
  "req": "var.set",
  "name": "mode",
  "text": "heat"
}

J *req = notecard.newRequest("var.set");
JAddStringToObject(req, "name", "mode");
JAddStringToObject(req, "text", "heat");

notecard.sendRequest(req);

req = {"req": "var.set"}
req["name"] = "mode"
req["text"] = "heat"

card.Transaction(req)

var.set is an "upsert": if the variable doesn't exist yet it's created, and if it does exist its value is replaced. Your firmware doesn't need to worry about whether it's creating or updating a variable.

Like other Notefile changes, a var.set doesn't cause an immediate sync, and the new value won’t travel to Notehub until the next sync as determined by your hub.set mode and outbound period. For state changes a user expects to see in the cloud promptly, like a target-temperature change from the thermostat's dial, add "sync": true to the request to trigger an immediate sync.

To read a variable back, for example when the thermostat’s display needs the current target temperature , use var.get:

{
  "req": "var.get",
  "name": "target_temp"
}

J *req = notecard.newRequest("var.get");
JAddStringToObject(req, "name", "target_temp");

J *rsp = notecard.requestAndResponse(req);
double targetTemp = JGetNumber(rsp, "value");
notecard.deleteResponse(rsp);

req = {"req": "var.get"}
req["name"] = "target_temp"

rsp = card.Transaction(req)
target_temp = rsp["value"]

The response returns the typed field you stored:

{
  "value": 21.5
}

Storing Structured State with note Requests

Some state is more than a single value. A thermostat's weekly schedule, for example, is a set of periods, each with a start time and a target temperature. For structured state like this, use the note requests directly on a DB Notefile of your own, where each Note gets a developer-chosen Note ID that acts as its key, and a JSON body that holds the structured value.

For the thermostat, a schedule.db Notefile with one Note per schedule period works well:

The example above uses one Note per schedule period instead of a single Note that holds the whole schedule. If the whole schedule were one Note, and both the device and Notehub changed it between syncs, one change would overwrite the other. In general, if values can change independently, it’s best to store them in separate Notes to make synchronization conflicts less frequent. See Handling Conflicting Changes below for what happens when a conflict does occur.

To write a Note, use note.update. If the Note (or the Notefile itself) doesn't exist yet, note.update creates it, so firmware can use a single request for both first-time setup and later changes:

{
  "req": "note.update",
  "file": "schedule.db",
  "note": "weekday-morning",
  "body": {"start": "06:30", "temp": 21}
}

J *req = notecard.newRequest("note.update");
JAddStringToObject(req, "file", "schedule.db");
JAddStringToObject(req, "note", "weekday-morning");

J *body = JCreateObject();
JAddStringToObject(body, "start", "06:30");
JAddNumberToObject(body, "temp", 21);
JAddItemToObject(req, "body", body);

notecard.sendRequest(req);

req = {"req": "note.update"}
req["file"] = "schedule.db"
req["note"] = "weekday-morning"
req["body"] = {"start": "06:30", "temp": 21}

card.Transaction(req)

note

You can also add Notes to a DB Notefile with note.add, but note.add returns a {note-exists} error if a Note with the same ID already exists. For state management, note.update's create-or-replace behavior is almost always what you want. Also keep in mind that, like var.set, note.update replaces the Note's entire body, and any fields omitted from the new body are removed.

To read a Note back, use note.get with the Notefile ID and Note ID:

{
  "req": "note.get",
  "file": "schedule.db",
  "note": "weekday-morning"
}

J *req = notecard.newRequest("note.get");
JAddStringToObject(req, "file", "schedule.db");
JAddStringToObject(req, "note", "weekday-morning");

J *rsp = notecard.requestAndResponse(req);
J *body = JGetObject(rsp, "body");
notecard.deleteResponse(rsp);

req = {"req": "note.get"}
req["file"] = "schedule.db"
req["note"] = "weekday-morning"

rsp = card.Transaction(req)
body = rsp["body"]

The response includes the Note's body and the time it was created or last updated:

{
 "note": "weekday-morning",
 "body": {
  "start": "06:30",
  "temp": 21
 },
 "time": 1754320085
}

And to remove a Note—say the user deletes a schedule period—use note.delete. As with all DB Notefile changes, the deletion replicates to Notehub on the next sync:

{
  "req": "note.delete",
  "file": "schedule.db",
  "note": "weekend"
}

J *req = notecard.newRequest("note.delete");
JAddStringToObject(req, "file", "schedule.db");
JAddStringToObject(req, "note", "weekend");

notecard.sendRequest(req);

req = {"req": "note.delete"}
req["file"] = "schedule.db"
req["note"] = "weekend"

card.Transaction(req)

Working with Device State from the Cloud

Everything the thermostat stores in vars.db and schedule.db is replicated to Notehub, where the same state can be viewed and changed, and changes made in Notehub replicate back to the device. This section covers both directions: managing the state from the cloud, and detecting cloud-made changes on the device.

Viewing and Editing State in the Notefile Explorer

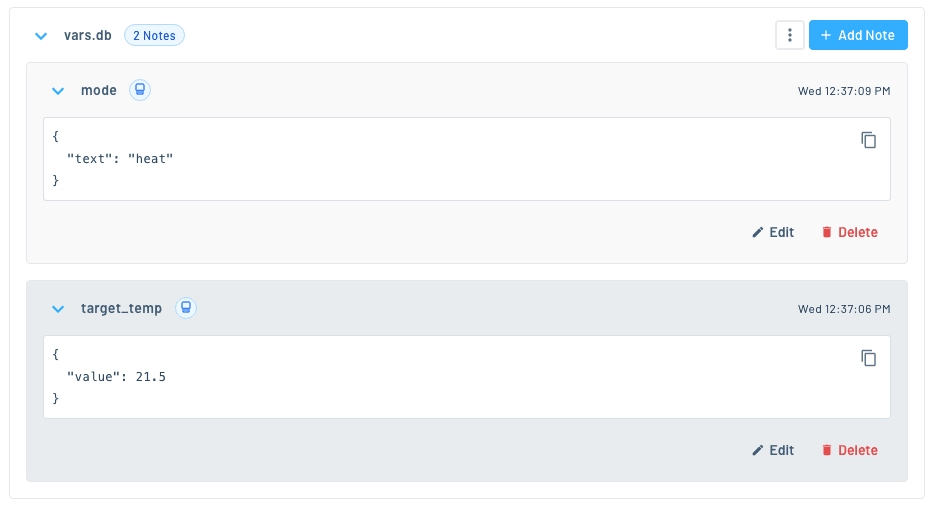

Every device in Notehub has a Notefiles tab, called the Notefile explorer, that shows the device’s Notefiles and the Notes within them. For the thermostat, opening vars.db shows the current mode and target_temp values:

From here you can edit a Note's body directly, add or delete new Notes, and create new DB Notefiles. Edits made in Notehub are marked Pending sync to Notecard until the device's next sync, and each Note shows whether it was last updated by Notecard or by Notehub.

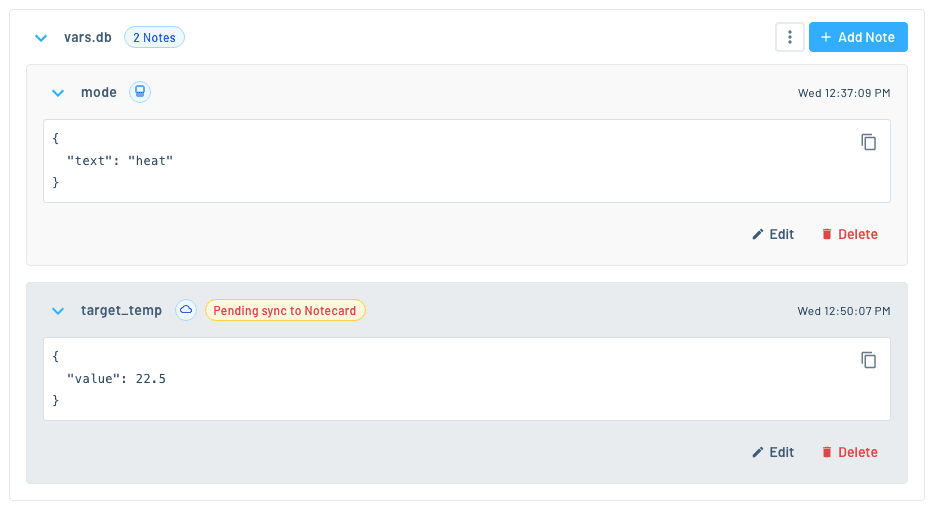

For example, the screenshot below shows the target_temp Note after an update was made to its value, and before it was synchronized down to Notecard.

See Managing Notefiles in the Notehub walkthrough for a full tour of the Notefile explorer.

Changing State with the Notehub API

For a production dashboard or backend, use the Notehub API to read and write the same Notes programmatically. For example, the request below updates the thermostat’s target temperature. Note that the body uses the value field, matching how var.set stores numeric variables:

curl -X PUT
    -L 'https://api.notefile.net/v1/projects/<projectUID>/devices/<deviceUID>/notes/vars.db/target_temp'
    -H 'Authorization: Bearer <access_token>'
    -d '{"body": {"value": 22.5}}'

Similarly, this request updates one period of the thermostat’s schedule:

curl -X PUT
    -L 'https://api.notefile.net/v1/projects/<projectUID>/devices/<deviceUID>/notes/schedule.db/weekday-morning'
    -H 'Authorization: Bearer <access_token>'
    -d '{"body": {"start": "07:00", "temp": 20}}'

The updated Notes replicate to the Notecard on its next sync. If the change needs to reach the device before its next scheduled inbound sync, adjust the inbound period in hub.set, or consider using the hub.set request’s sync argument so that new inbound data syncs to your device immediately.

Detecting Cloud Changes on the Device

Once a change syncs to the Notecard, oftentimes your host firmware needs to take action. The simplest check is a file.changes request, which summarizes changed Notes across Notefiles. But to consume know exactly which Notes changed since the firmware last looked, use a change tracker with note.changes:

{
  "req": "note.changes",
  "file": "schedule.db",
  "tracker": "host-schedule"
}

J *req = notecard.newRequest("note.changes");
JAddStringToObject(req, "file", "schedule.db");
JAddStringToObject(req, "tracker", "host-schedule");

J *rsp = notecard.requestAndResponse(req);
J *notes = JGetObject(rsp, "notes");
// Iterate over the changed Notes and apply them.
notecard.deleteResponse(rsp);

req = {"req": "note.changes"}
req["file"] = "schedule.db"
req["tracker"] = "host-schedule"

rsp = card.Transaction(req)
notes = rsp.get("notes", {})
# Iterate over the changed Notes and apply them.

The first call with a new tracker returns all Notes in the Notefile; each subsequent call returns only the Notes that changed since the previous call:

{
 "changes": 1,
 "total": 4,
 "notes": {
  "weekday-morning": {
   "body": {
    "start": "07:00",
    "temp": 20
   },
   "time": 1754322910
  }
 }
}

Polling note.changes works but is not battery efficient. If power usage is a concern (for example in a battery-powered thermostat), you can use a Notecard’s attention pin to interrupt the host when a watched Notefile changes:

{
  "req": "card.attn",
  "mode": "arm,files",
  "files": ["vars.db", "schedule.db"]
}

J *req = notecard.newRequest("card.attn");
JAddStringToObject(req, "mode", "arm,files");

J *files = JAddArrayToObject(req, "files");
JAddItemToArray(files, JCreateString("vars.db"));
JAddItemToArray(files, JCreateString("schedule.db"));

notecard.sendRequest(req);

req = {"req": "card.attn"}
req["mode"] = "arm,files"
req["files"] = ["vars.db", "schedule.db"]

card.Transaction(req)

With this workflow, when cloud changes sync down and modify one of the watched Notefiles, the Notecard’s ATTN pin fires, the host wakes, and a no-argument card.attn request reports which Notefile changed—at which point the firmware reads the new state with var.get or note.changes and applies it. For a complete guide to attention-pin-driven designs, see the Notecard Attention Guide.

Handling Conflicting Changes

Because both the device and the cloud can write to a DB Notefile, it's possible for both sides to change the same Note between two syncs. For example, someone might turn the thermostat's dial to 21°C while, before the next sync, someone else sets the target temperature to 23°C from a dashboard.

When this happens, the Notecard and Notehub resolve the conflict automatically. There is no error and nothing for your firmware or backend to handle. Both sides apply the same rules to pick a single winning copy of the Note, so after the next sync the device and the cloud always converge on the same value.

The rules, in order:

1. The copy of the Note that has been changed the most times wins. Each Note keeps a count of its changes, so a Note that was edited twice on the device beats a Note that was edited once in Notehub, even if the Notehub edit happened later.
2. If the change counts are equal, the copy with the most recent change wins.
3. If the changes happened at the same time, Notehub’s copy wins.

In the example above, both sides changed the Note once, so the most recent change wins, and both the device and the dashboard end up showing 23°C.

The losing change is discarded. The winning copy of the Note replaces the losing copy entirely, and fields from the two bodies are never merged, which is another reason to keep independently changing values in separate Notes. Deleting a Note follows the same rules as updating one: if one side deletes a Note and the other side updates it, whichever change wins decides whether the Note still exists.

note

The "most recent change wins" rule depends on the Notecard knowing the current time, which it learns from the network shortly after it first connects. If a Notecard does not yet have the time, its changes carry no timestamp, and they lose to any change from Notehub that does.

In practice, conflicts are rare in a well-structured DB Notefile, as they only occur when the same Note changes on both sides between two syncs.

Storing Local-Only State with .dbx Notefiles

Finally, some device state has no business in the cloud. The thermostat's display brightness is a good example: the user might adjust it many times a day, it must survive a reboot, but it's not necessary to store in the cloud.

For this kind of state, you can use a DB Notefile with a .dbx extension. A .dbx Notefile is local-only; it behaves exactly like any other DB Notefile, but it never syncs, never triggers a sync, and never appears in Notehub.

In effect, a .dbx Notefile turns the Notecard into a small persistent key-value store for the host. This is especially useful for host MCUs with limited (or no) spare non-volatile storage.

For example, the request below shows how to store a display brightness in a local.dbx Notefile:

{
  "req": "var.set",
  "file": "local.dbx",
  "name": "brightness",
  "value": 80
}

J *req = notecard.newRequest("var.set");
JAddStringToObject(req, "file", "local.dbx");
JAddStringToObject(req, "name", "brightness");
JAddNumberToObject(req, "value", 80);

notecard.sendRequest(req);

req = {"req": "var.set"}
req["file"] = "local.dbx"
req["name"] = "brightness"
req["value"] = 80

card.Transaction(req)

Summary

Pulling the whole thermostat design together, here's every value the product manages and the mechanism it uses:
